Acknowledgements

This project is based on the AddressBook-Level3 project created by the SE-EDU initiative.

Setting up, getting started

Refer to the guide Setting up and getting started.

Design

:bulb: Tip: The .puml files used to create diagrams in this document docs/diagrams folder. Refer to the PlantUML Tutorial at se-edu/guides to learn how to create and edit diagrams.

Architecture

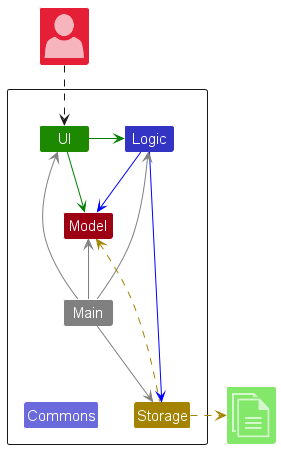

The Architecture Diagram given above explains the high-level design of the app.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

  • At app launch, it initialises the other components in the correct sequence, and connects them up with each other.
  • At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app’s work is done by the following four components:

  • UI: The UI of the app.
  • Logic: The command executor.
  • Model: Holds the data of the app in memory.
  • Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

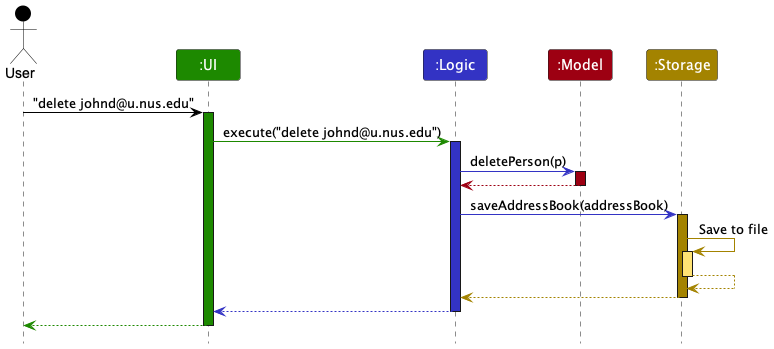

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete johnd@u.nus.edu.

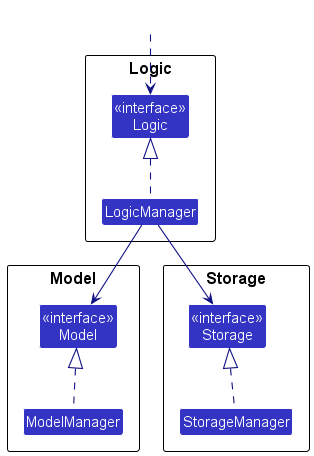

Each of the four main components (also shown in the diagram above),

  • defines its API in an interface with the same name as the Component.
  • implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point).

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

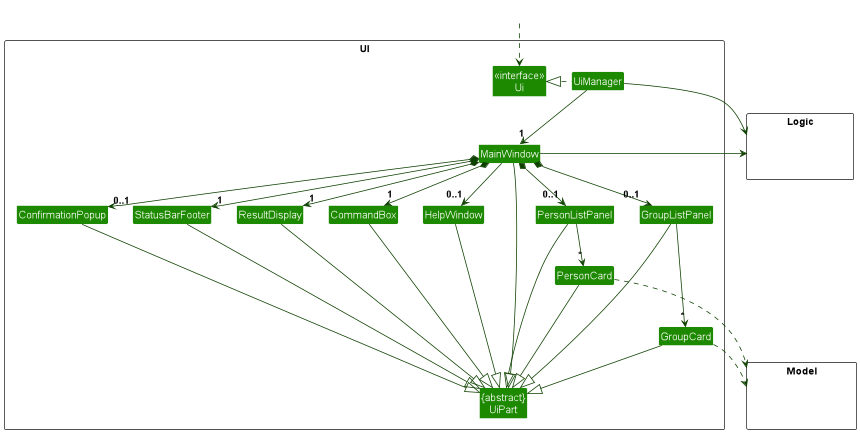

Structure of the UI Component

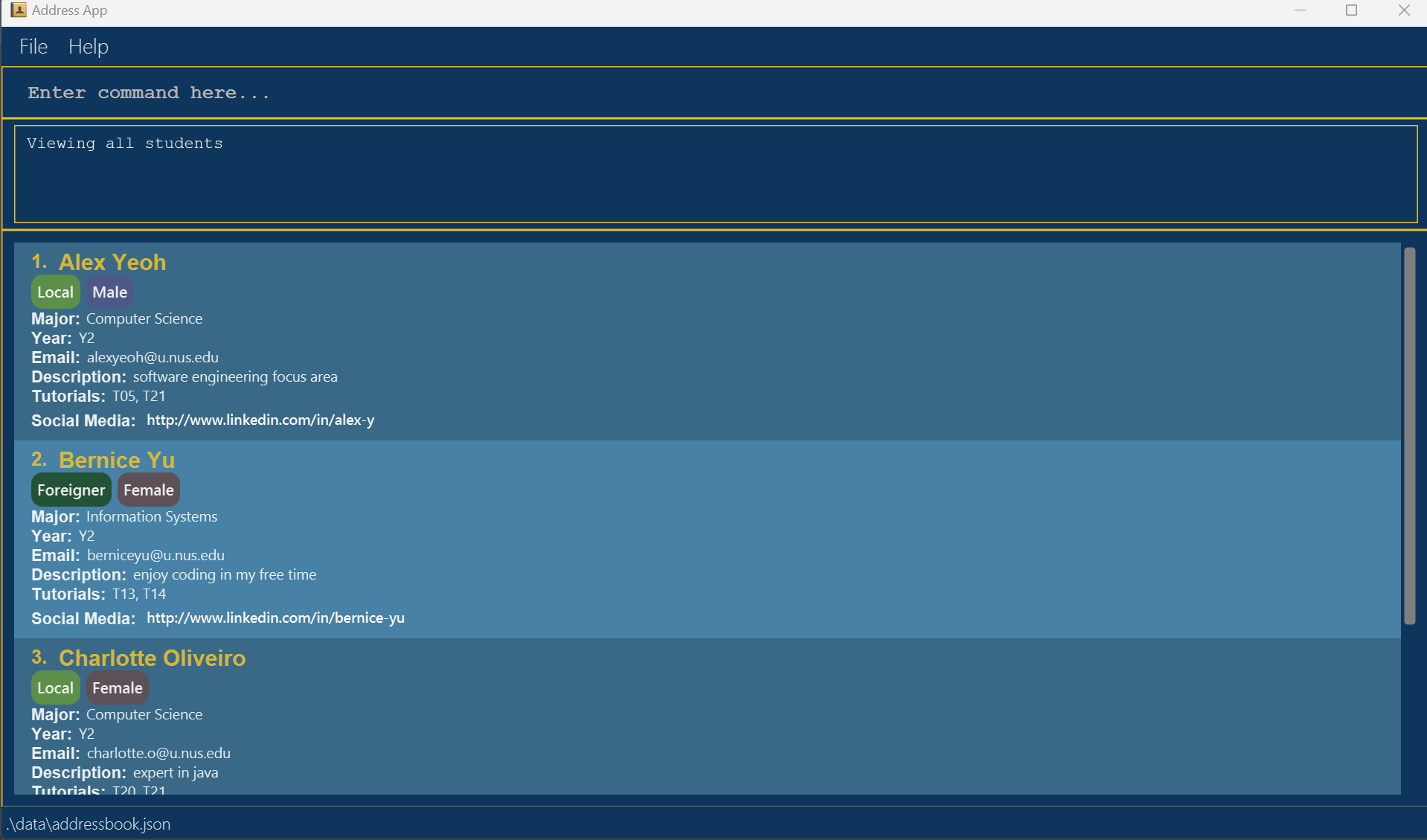

The UI consists of a MainWindow that is made up of different parts e.g., CommandBox, ResultDisplay, PersonListPanel, StatusBarFooter, ConfirmationPopup etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

  • executes user commands using the Logic component.
  • listens for changes to Model data so that the UI can be updated with the modified data.
  • keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
  • depends on some classes in the Model component, as it displays Person or Group object residing in the Model.

Logic component

API : Logic.java

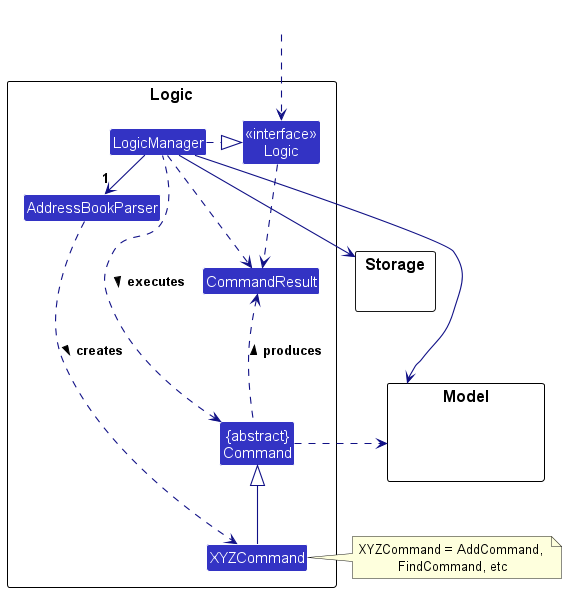

Here’s a (partial) class diagram of the Logic component:

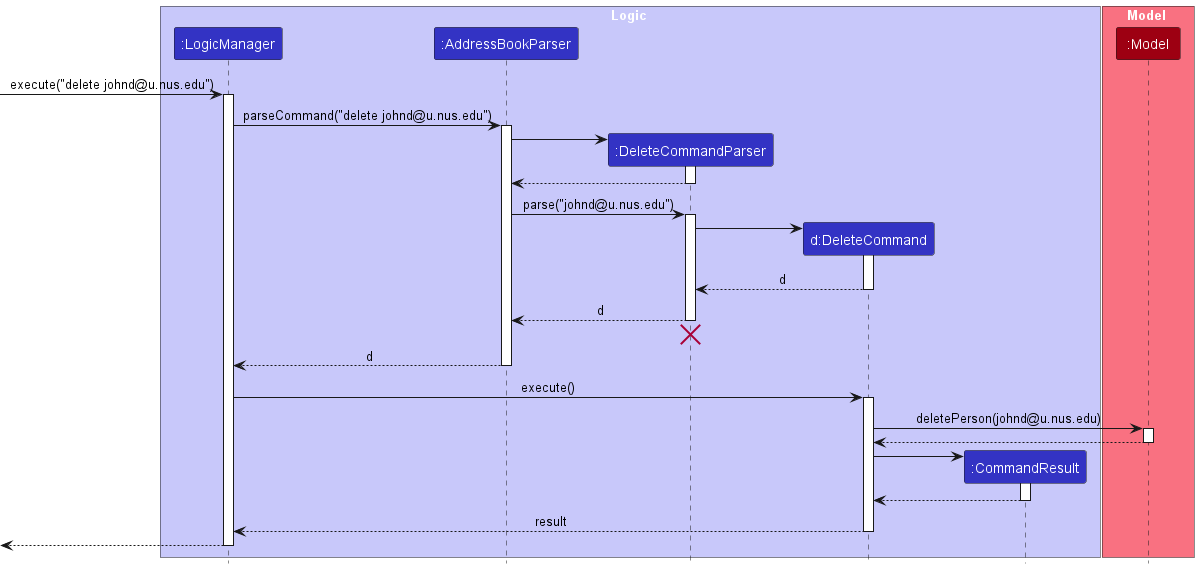

The sequence diagram below illustrates the interactions within the Logic component, taking execute("delete johnd@u.nus.edu") API call as an example.

Interactions Inside the Logic Component for the `delete johnd@u.nus.edu` Command

:information_source: Note: The lifeline for DeleteCommandParser should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

How the Logic component works:

  1. When Logic is called upon to execute a command, it is passed to an AddressBookParser object which in turn creates a parser that matches the command (e.g., DeleteCommandParser) and uses it to parse the command.
  2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeleteCommand) which is executed by the LogicManager.
  3. The command can communicate with the Model when it is executed (e.g., to delete a person).
  4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

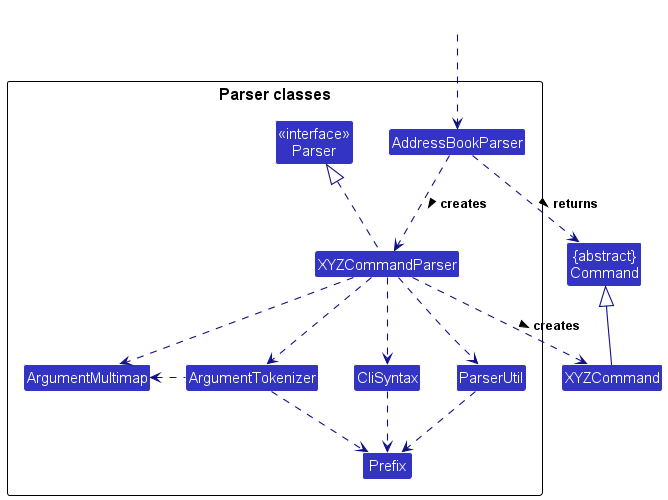

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

  • When called upon to parse a user command, the AddressBookParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the AddressBookParser returns back as a Command object.
  • All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Model component

API : Model.java

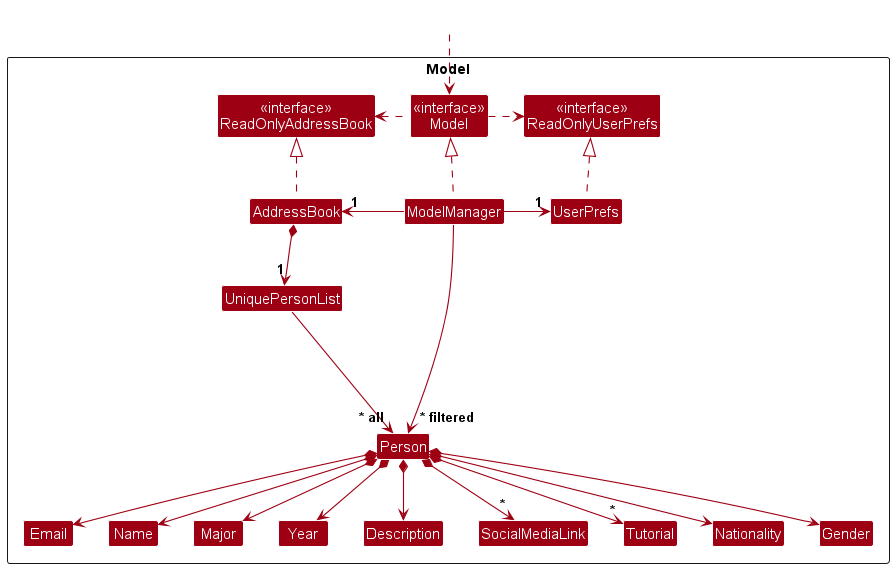

Person Model Class Diagram
Person Model Class Diagram

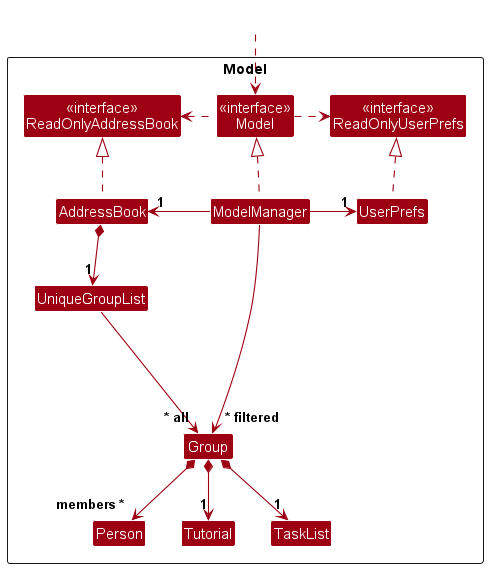

Group Model Class Diagram
Group Model Class Diagram

The Model component,

  • stores the address book data i.e., all Person objects (which are contained in a UniquePersonList object), and all Group objects (which are contained in a UniqueGroupList object).
  • stores the currently ‘selected’ Person objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Person> that can be ‘observed’ e.g., the UI can be bound to this list so that the UI automatically updates when the data in the list change.
  • stores the currently ‘selected’ Group objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Group> that can be ‘observed’ e.g., the UI can be bound to this list so that the UI automatically updates when the data in the list change.
  • stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
  • does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

Storage component

API : Storage.java

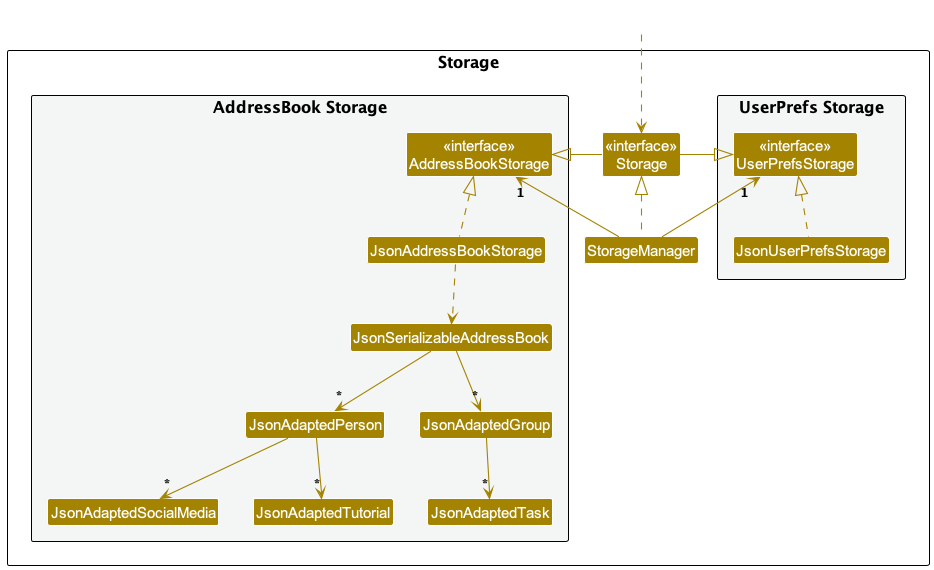

The Storage component,

  • can save both address book data and user preference data in JSON format, and read them back into corresponding objects.
  • inherits from both AddressBookStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
  • depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.addressbook.commons package.

Implementation

This section describes some noteworthy details on how certain features are implemented.

Tutorial Field

Current Implementation

In response to the evolving needs of StudentConnect, we have introduced several essential enhancements to user profiles. These enhancements include the addition of fields for Tutorial, Nationality, and Gender.

The Tutorial field is a crucial addition to the StudentConnect application, providing users with the capability to specify their tutorial groups, which are integral to their group formation needs. Here, we detail how the Tutorial field is implemented:

  • Data Structure: Tutorials are now stored as a Set of Tutorial objects within the Person model. The use of a Set ensures that no duplicate tutorials can be associated with a single user. The code snippet below demonstrates this implementation:

    Set<Tutorial> tutorials = new HashSet<Tutorial>();

  • Tutorial Attributes: Each Tutorial object possesses an attribute called “value,” which is of type string. The “value” must adhere to a two-digit format, ranging from 01 to 22.

  • Consistency: The decision to enforce a two-digit format (e.g., T01, T02) was made for consistency, ensuring that all tutorials are consistently represented as “TXX,” where XX corresponds to the tutorial group.

  • Range: The allowed range of values, spanning from 01 to 22, aligns with the number of available tutorial group options for AY2023/2024 SEM1.

  • Set vs. List: Initially, the tutorials field was implemented as a List of Tutorial objects (List<Tutorial>). However, we observed that this approach allowed for multiple duplicate tutorials to be input without triggering errors. To address this, we transitioned to using a Set of tutorials, which inherently disallows duplicate entries without the need for additional validation checks:

    // Initial implementation as a List
List<Tutorial> tutorials = new ArrayList<Tutorial>();

List Tasks Feature

Current Implementation

The list tasks feature is facilitated by the TasksCommand class and involves the cooperation of several other classes including Group, TaskList, and Model. This command is designed to list all tasks associated with a specific group in StudentConnect, which is particularly useful for managing tasks in courses like CS2103T and CS2101.

The process is initiated when the user inputs a command to list tasks associated with a group. Here’s the breakdown of the steps and class interactions:

  1. Input Parsing: The user’s input is first parsed by AddressBookParser, which identifies the command word and delegates the argument parsing to TasksCommandParser.

  2. Command Creation: TasksCommandParser parses the provided arguments, checks for correctness, and if valid, constructs a TasksCommand object with the specified group number.

  3. Command Execution: TasksCommand#execute() is then called. It retrieves the specified group by number using Model#getGroupWithNumber(). If the group exists, it then retrieves the group’s tasks using Group#getTasks().

  4. Task Initialisation: If no tasks are currently set, TasksCommand initialises a default set of tasks through TaskInitializer.initializeTasks() to ensure that each group has tasks pre-set, reflecting the course’s structure.

  5. Result Generation: Finally, the tasks are converted to a String format and included in the CommandResult which then displays the tasks in the feedback panel.

The TasksCommand class performs the following operations:

  • TasksCommand#execute() - Lists all tasks for the specified group number.
  • TasksCommand#equals() - Compares this TasksCommand with another command for equality, based on the group number.

The feature’s utility is highlighted by its ability to list pre-set tasks automatically assigned to each group, reflecting the tasks specific to CS2103T and CS2101 courses.

Proposed Future Implementation

The future enhancements for the Tasks Command aim to significantly improve user interaction and task management within the application. The proposed improvements will enable users to not only list tasks but also add, edit, and delete tasks as per their requirements. This will provide users with full control over how they manage the task workflow for each group, making the application more flexible and user-friendly.

Additionally, we plan to develop a dedicated panel within the User Interface (UI) specifically for tasks. This dedicated task panel will allow users to view all tasks in a separate, focused area of the UI, making task management more organized and less cluttered. With a dedicated panel, the tasks will not only be more visible but can also be interacted with in a more intuitive way. Users will be able to see at a glance all the tasks for a group, check their completion status, and access task details with a single click.

Create group feature

Implementation

The create group feature is implemented via the CreateCommand class and involves the following classes: Group, UniqueGroupList, JsonAdaptedGroup, AddressBook, JsonSerializableAddressBook.
CreateCommand implements the following operations:

  • CreateCommand#execute() — Creates a new empty group using the group number generated from generateGroupNumber.
  • CreateCommand#generateGroupNumber() — Generates the next available group number.

Given below is an example usage scenario and how the create feature behaves at each step.

Step 1. The user types in “create t/01”. The string, “t/01”, is parsed by CreateCommandParser, which returns a new instance of CreateCommand.
Step 2. The command is then executed by CreateCommand#execute(). CreateCommand#execute() calls CreateCommand#generateGroupNumber().
Step 3. CreateCommand#generateGroupNumber() generates the next available group number, which is the next largest number that has not been assigned to a group. It loads in the current state of the Address Book via AddressBook#getAddressBook. It then iterates over the Group list inside the Address Book and checks the numbers of the groups to determine the next available group number.
Step 4. CreateCommand#execute() creates a new Group using the generated group number and adds it to the Address Book via AddressBook#addGroup.
Step 5. The CommandResult containing the success message is shown to the user.

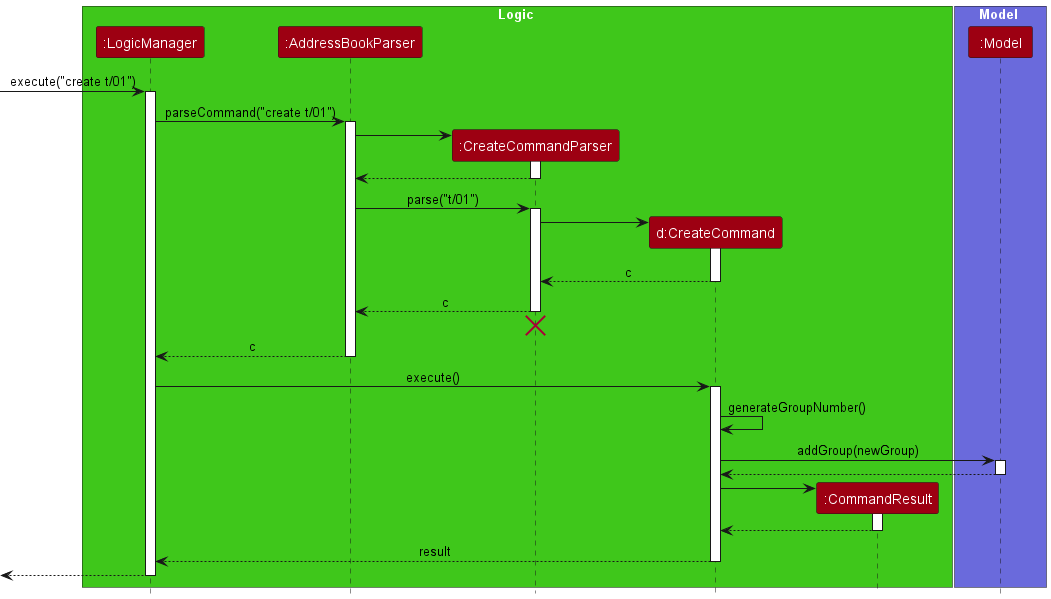

Shown below is the sequence diagram for the given scenario. The LogicManager, AddressBookParser and Model classes are also included to give a complete picture of the process.

CreateCommand sequence diagram

:information_source: Note: The lifeline for CreateCommandParser should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

Documentation, logging, testing, configuration, dev-ops

Appendix: Requirements

Product scope

Target user profile:

  • CS2103T student
  • Face challenges in finding like-minded students for group projects
  • Busy academic schedule
  • Need assistance in keeping track of project deadlines, tasks, and progress
  • Can type fast
  • Prefer desktop apps over other types
  • Prefers typing to mouse interactions

Value proposition: StudentConnect stores and organises students’ contact details, and project group. Students can easily search for the profiles of other students and connect with potential teammates. This streamlines the process of forming project teams. It also offers tools for tracking project progress/deadlines, ensuring that the group stays on task. There is no other application quite like StudentConnect for CS2103T students.

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority As a …​ I want to …​ So that I can…​
* * * student add my personal details to the system get other students to learn more about me
* * * student view the rest of the students in the course see my options for choosing teammates
* * * student see the other student’s name, major,tutorial slots, basic info, etc. make informed decisions
* * * student see the nationality and gender of other students meet the criteria when forming a group
* * * student customise and update my profile details ensure that my profile is up-to-date
* * * student view other students in the same tutorial group communicate with them
* * * student remove my personal details from the system stop using the application
* * * student create a group on the app form a group for the course
* * * student join a group on the app form a group for the course
* * student seek help and check requirements for CS2101/CS2103T groupings be more clear of the valid group formations
* * student be able to click the links of the social media to view them avoid wasting time typing links manually
* * student be able to leave a group on the app join another group of my choice
* * student be able to delete a group I created on the app get rid of unnecessary groups on the system
* * student be able to view my courses’ deadlines and tasks keep track of my projects’ deliverables
* * student be able to mark a task as complete prioritise other tasks
* * student be able to unmark a task as incomplete prioritise on completing it
* * * course coordinator be able to remove all the data from the system reuse the application for new batches of students
* * * course coordinator be asked to confirm if I want to clear all the data prevent accidentally clearing all the data
* * * user exit the app close the app

Use cases

(For all use cases below, the System is StudentConnect and the Actor is the student, unless specified otherwise)

Use case: UC1 - Add a student

MSS

  1. Student requests to add his/her personal information.

  2. StudentConnect adds the student’s information into the list.

    Use case ends.

Extensions

  • 2a. Input is invalid.
    • 2a1. StudentConnect displays error message.

    Use case ends.

Use case: UC2 - List students

MSS

  1. Student requests to list students.

  2. StudentConnect shows a list of students.

    Use case ends.

Extensions

  • 2a. The list is empty.

    Use case ends.

Use Case: UC3 - Access social media

MSS

  1. Student requests to list students (UC2).
  2. Student clicks on social media link of a person.

  3. StudentConnect opens the social media link in the browser.

    Use case ends.

Extensions:

  • 1a. Student requests to find a student instead.
    • Use case resumes from step 2.
  • 3a. The website linked does not exist.

    • 3a1. Browser shows that corresponding link does not exist.

      Use case ends.

  • 3b. Hyperlink does not exist

    • 3b1. StudentConnect does not redirect to the browser.

      Use case ends.

Use Case: UC4 - Edit a student

MSS

  1. Student requests to update a specific student’s details on the list by email.

  2. StudentConnect shows a list of students containing the student with the updated details.

    Use case ends.

Extensions:

  • 1a. The given email is invalid.
    • 1a1. StudentConnect shows an error message.

    Use case ends.

Use Case: UC5 - Find a student

MSS

  1. Student requests to find student(s) by name with keyword(s).

  2. StudentConnect shows a list of students whose name(s) contain the keyword(s).

    Use case ends.

Extensions:

  • 1a. The given keyword(s) does not match any of the students’ names.

    Use case ends.

Use Case: UC6 - Filter students

MSS

  1. Student requests to filter students by tutorial slot(s).

  2. StudentConnect shows a list of students whose tutorial(s) contain the given slot.

    Use case ends.

Extensions:

  • 1a. The given tutorial slot(s) is invalid.
    • 1a1. StudentConnect shows an error message.

  • 1b. The given slot(s) does not match any of the students’ tutorial slots.

    Use case ends.

Use Case: UC7 - Delete a student

MSS

  1. Student requests to delete a specific student on the list by email.

  2. StudentConnect deletes the student.

    Use case ends.

Extensions:

  • 1a. The given email is invalid.
    • 1a1. StudentConnect shows an error message.

    Use case ends.

Use Case: UC8 - Create a group

MSS

  1. Student requests to create a group by providing a tutorial number.

  2. StudentConnect creates a new empty group.

    Use case ends.

Extensions:

  • 1a. The given tutorial number is invalid.

    • 1a1. StudentConnect shows an error message.

      Use case ends.

Use Case: UC9 - List all groups

MSS

  1. Student requests to list groups.

  2. StudentConnect shows a list of groups.

    Use case ends.

Extensions

  • 2a. The list is empty.

    Use case ends.

Use Case: UC10 - Join a group

MSS

  1. Student requests to join a group by providing their email and the group number.

  2. StudentConnect adds the student to the group in the system.

    Use case ends.

Extensions:

  • 1a. The specified group does not exist.

    • 1a1. StudentConnect shows an error message.

      Use case ends.

  • 1b. The specified student is not found in the system.

    • 1b1. StudentConnect shows an error message.

      Use case ends.

  • 1c. The specified group is full.

    • 1c1. StudentConnect shows an error message.

      Use case ends.

  • 1d. The specified student is already in the specified group.

    • 1d1. StudentConnect shows an error message.

      Use case ends.

  • 1e. The specified student is already in another group.

    • 1e1. StudentConnect shows an error message.

      Use case ends.

Use Case: UC11 - Delete a group

MSS

  1. Student requests to delete a specific group.

  2. StudentConnect deletes the particular group.

    Use case ends.

Extensions:

  • 1a. The specified group does not exist.

    • 1a1. StudentConnect states the corresponding group does not exist.

      Use case ends.

Use Case: UC12 - Leave a group

MSS

  1. Student requests to leave a specific group.

  2. StudentConnect removes their details from the particular group.

    Use case ends.

Extensions:

  • 1a. The specified group does not exist.

    • 1a1. StudentConnect states the corresponding group does not exist.

      Use case ends.

  • 1b. The student is not in the specified group.

    • 1b1. StudentConnect notifies the student that they are not in the group.

      Use case ends.

Use Case: UC13 - Find a group

MSS

  1. Student requests to find group(s) by group number with keyword(s).

  2. StudentConnect shows a list of group(s) with group number(s) matching the keyword(s).

    Use case ends.

Extensions:

  • 1a. The given keyword(s) is invalid.
    • 1a1. StudentConnect shows an error message.

  • 1b. The given keyword(s) does not match any of the group numbers.

    Use case ends.

Use Case: UC14 - Filter groups

MSS

  1. Student requests to filter groups by tutorial slot.

  2. StudentConnect shows a list of groups that belong to the given tutorial slot.

    Use case ends.

Extensions:

  • 1a. The given tutorial slot is invalid.
    • 1a1. StudentConnect shows an error message.

  • 1b. The given tutorial slot does not match any of the groups’ tutorial slot.

    Use case ends.

Use Case: UC15 - Check a group

MSS

  1. Student requests to check if a particular group meets the requirements for group formation by group number.

  2. StudentConnect displays a message stating if the specified group meets the requirement.

    Use case ends.

Extensions:

  • 1a. The specified group is not registered in the system.
    • 1a1. StudentConnect shows an error message.
  • 1b. The group number is invalid.
    • 1b1. StudentConnect shows an error message.

    Use case ends.

Use Case: UC16 - List Tasks

MSS

  1. Student requests to list tasks of a specific group.
  2. Student provides the group number.
  3. StudentConnect retrieves the group by the given group number.
  4. If the group exists, StudentConnect displays the group in the group panel.
  5. StudentConnect displays the listed tasks along with a success message.
    Use case ends.

Extensions:

  • 2a. The student enters a non-existent group number.
    • 2a1. StudentConnect shows an error message: “Group with the provided group number not found.”
      Use case ends.
  • 2b. The student enters an invalid group number.
    • 2b1. StudentConnect shows an error message: “Invalid command format!”
      Use case ends.
  • 4a. The specified group exists but has no tasks initialised.
    • 4a1. StudentConnect initialises the tasks for the group.
    • 4a2. StudentConnect displays the newly initialised tasks along with a success message.
      Use case resumes at step 5.
  • 4b. Task initialisation fails due to a system error.
    • 4b1. StudentConnect displays an error message indicating a failure in task initialisation. Use case ends.

Use Case: UC17 - Mark Task as Done

MSS

  1. Student requests to mark a task of a group as done.
  2. Student provides the group number and task index.
  3. StudentConnect marks the specified task as done.

  4. StudentConnect displays a success message.

    Use case ends.

Extensions:

  • 2a. The specified group does not exist.
    • 2a1. StudentConnect shows an error message: “Group with the provided group number not found.”
      Use case ends.
  • 2b. The specified task index is invalid.
    • 2b1. StudentConnect shows an error message: “Invalid task index. Task not found.”
      Use case ends.

Use Case: UC18 - Mark Task as Not Done

MSS

  1. Student requests to unmark a task that was marked as done.
  2. Student provides the group number and task index.
  3. StudentConnect marks the specified task as not done.

  4. StudentConnect displays a success message.

    Use case ends.

Extensions:

  • 2a. The specified group does not exist.
    • 2a1. StudentConnect shows an error message: “Group with the provided group number not found.”
      Use case ends.
  • 2b. The specified task index is invalid.
    • 2b1. StudentConnect shows an error message: “Invalid task index. Task not found.”
      Use case ends.

Use Case: UC19 - Get help

MSS

  1. Student requests to see requirement list or user guide by typing “help”.

  2. StudentConnect displays the help message, along with the requirement message and a link to the user guide.

    Use case ends.

Use case: UC20 - Clear all data

MSS

  1. User requests to clear data.
  2. StudentConnect shows a pop-up asking for confirmation.
  3. User confirms.

  4. StudentConnect clears all data from the system.

    Use case ends.

Extensions

  • 3a. User cancels clearing the data.

    • 3a1. StudentConnect cancels the process and returns to main window.

      Use case ends.

  • 3a. User does not respond.

    Use case ends.

Use Case: UC21 - Exit the app

MSS

  1. Student requests to delete the app by typing “exit”.
  2. StudentConnect displays the goodbye message.

  3. StudentConnect closes.

    Use case ends.

Non-Functional Requirements

  1. Should work on any mainstream OS as long as it has Java 11 or above installed.
  2. Should be able to hold up to 1000 students without a noticeable sluggishness in performance for typical usage.
  3. A student with above average typing speed for regular English text (i.e., not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.

Glossary

  • Mainstream OS: Windows, Linux, Unix, OS-X
  • CS2101: Effective Communication for Computing Professionals - An NUS course designed to equip computing professionals with essential communication skills, both in technical and non-technical contexts. It covers the creation of clear and comprehensible software documentation and effective communication strategies for diverse audiences.
  • CS2103T: Software Engineering - An NUS course focusing on the systematic and rigorous development of software systems. It covers essential concepts and analytical tools necessary for software engineering.
  • Command Terminal: An interface in a computing environment where you can input text commands to perform specific tasks. Some examples include “Terminal” on macOS and “Powershell” on Windows.
  • GUI (Graphical User Interface): A type of user interface that allows you to interact with electronic devices through graphical icons and visual indicators, as opposed to text-based interfaces, typed command labels, or text navigation.
  • Home Folder: In computing, this is a personal directory assigned to you in a file system, where they store personal files, settings, and configurations.
  • Java 11: A version of Java, a widely used programming language and computing platform. Java 11 includes various updates and features different from its predecessors.

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

:information_source: Note: These instructions only provide a starting point for testers to work on; testers are expected to do more exploratory testing. Testers can refer to the User Guide to check out more ways to test the app.

Launch and shutdown

  1. Initial launch

    1. Ensure you have Java 11 or above installed in your Computer.

    2. Download the latest studentconnect.jar from here.

    3. Copy the file to the folder you want to use as the home folder for your StudentConnect.

    4. Open a command terminal, cd into the folder you put the jar file in, and use the java -jar studentconnect.jar command to run the application.

    5. Expected: Shows the GUI with a set of sample data. The window size may not be optimum.

    Ui

  2. Saving window preferences

    1. Resize the window to an optimum size. Move the window to a different location. Close the window.

    2. Re-launch the app by repeating step 4 of the Initial launch.
      Expected: The most recent window size and location is retained.

  3. Shutting down

    1. Input command exit into the CLI of the StudentConnect app.
      Alternatively, click the File button, followed by the Exit button.

    2. Expected: The exit message is shown and the app closes.
      Exception: When using the exit button to close the app, the exit message is not shown.

General Commands

  1. Viewing help and group requirements

    1. Test case: help.
      Expected: Opens help window which shows the help message, Copy Url button and group requirements message.

    2. Test case: help X.
      X is any input written after help.
      Expected: Similar to previous.

  2. Clearing all entries

    1. Test case: clear and clicking Yes.
      Expected: Opens confirmation window and successfully clears all entries.

    2. Test case: clear and clicking Cancel.
      Expected: Opens confirmation window and entries are not cleared.

    3. Test case: clear X.
      X is any input written after clear.
      Expected: Similar to test case 2.1.

  3. Exiting the program

    1. Similar to the shutting down case mentioned above.

Student Commands

  1. Adding a student

    1. Test case: add n/John Doe m/Computer Science y/2 e/johnd@u.nus.edu d/I’m a Frontend Developer t/06 t/19 sm/https://www.linkedin.com/in/john-doe-123456789 nt/local g/m.
      Expected: John doe added to student list.

    2. Test case: add X.
      X is any input that does not follow format: n/NAME m/MAJOR y/YEAR e/EMAIL d/DESCRIPTION [t/TUTORIALS]… [sm/SOCIALMEDIA]… nt/NATIONALITY g/GENDER.
      Note: Social media and tutorial are optional.
      Note: Please refer to the User Guide for information on the valid fields’ values.
      Expected: Error details shown in the status message.

  2. Editing a student

    1. Test case: edit johnd@u.nus.edu y/3 e/johndoe@u.nus.edu.
      Expected: Student with above email has year changed to 3 and email changed to johndoe@u.nus.edu.

    2. Test case: edit X.
      X is any input that does not follow format: EMAIL [n/NAME] [m/MAJOR] [y/YEAR] [e/EMAIL] [d/DESCRIPTION] [t/TUTORIALS]…​ [sm/SOCIALMEDIA]…​ [nt/NATIONALITY] [g/GENDER].
      Note: Fields in [] are optional.
      Expected: Error details shown in the status message.

  3. Deleting a student

    1. Test case: delete alexyeoh@u.nus.edu.
      Expected: Student with above email deleted from the list. Details of the deleted student shown in the status message.

    2. Test case: delete 0.
      Expected: No student is deleted. Error details shown in the status message. Status bar remains the same.

  4. Listing all students

    1. Test case: list.
      Expected: List students in StudentConnect.

    2. Test case: list X.
      X is any input written after list.
      Expected: Similar to previous.

  5. Finding a student by name

    1. Test case: find John.
      Expected: List students with john in their name. If no students found, no students will be listed.

    2. Test case: find john betsy.
      Expected: List students with john or betsy in their name. If no students found, no students will be listed.

  6. Filtering students by tutorial

    1. Test case: filter 10.
      Expected: List students with T10 as their chosen tutorial. If no students found, no students will be listed.

    2. Test case: filter 12 15.
      Expected: List students with T12 or T15 as their chosen tutorial. If no students found, no students will be listed.

    3. Test case: filter 0 or filter 23.
      Expected: Error details shown in status message as command only accepts tutorial groups from 01 to 22 inclusive.

Group Commands

  1. Creating a new group

    1. Test case: create t/10.
      Expected: Create a new empty group with T10 as its tutorial group.

    2. Test case: create t/0 or create t/23.
      Expected: Error details shown in status message as command only accepts tutorial groups from 01 to 22 inclusive.

  2. Listing all groups

    1. Test case: listGroup.
      Expected: List all groups in StudentConnect.

    2. Test case: listGroup X.
      X is any input written after listGroup.
      Expected: Similar to previous.

  3. Deleting a group

    1. Test case: deleteGroup gr/1.
      Expected: Group with above group number deleted from the group list.

    2. Test case: deleteGroup 0.
      Expected: No group is deleted. Error details shown in the status message.

  4. Joining a group

    1. Test case: join e/johnd@u.nus.edu gr/1.
      Expected: If there is lesser than 5 people in group 1, John Doe joins the group. Group list is displayed.

    2. Test case: join e/johnd@u.nus.edu gr/2.
      Expected: Since John Doe is already in a group (as mentioned in the previous test case), error details will be shown in the status message.

  5. Leaving a group

    1. Test case: leave e/johnd@u.nus.edu gr/1.
      Expected: If John Doe is in the group 1, his details will be removed from the group.

    2. Test case: leave e/johnd@u.nus.edu gr/2.
      Expected: Since John Doe is not a member of group 2, error details will be shown in the status message.

  6. Finding group by group number

    1. Test case: findGroup 7.
      Expected: Group 7 is listed. If the group exists, it will be listed.

    2. Test case: findGroup 1 3.
      Expected: Group 1 and 3 listed. If the group exists, it will be listed.

    3. Test case: findGroup -1.
      Expected: Error details will be shown in the status message as group number needs to be a non-zero unsigned integer.

  7. Filtering group by tutorial

    1. Test case: filterGroup 10.
      Expected: List groups with T10 as their tutorial slot. If no groups found, no groups will be listed.

    2. Test case: filterGroup 12 15.
      Expected: List groups with T12 or T15 as their tutorial slot. If no groups found, no groups will be listed.

    3. Test case: filterGroup 0 or filterGroup 23.
      Expected: Error details shown in status message as command only accepts tutorial groups from 01 to 22 inclusive.

  8. Checking a group

    1. Test case: checkGroup 4.
      Expected: Checks if group 4 fulfils requirements mentioned in the help window. Returns message of requirements that are and are not fulfilled.

    2. Test case: checkGroup a.
      Expected: Error details shown in status message as command only accepts non-zero unsigned integers.

  9. Listing all tasks

    1. Test case: tasks 5.
      Expected: List all tasks of group 5.

    2. Test case: tasks a.
      Expected: Error details shown in status message as command only accepts non-zero unsigned integers.

  10. Marking a task as done

    1. Test case: mark gr/1 ti/1.
      Expected: If group 1 exists, marks task 1 as done. List tasks of the group 1 in the status message.

    2. Test case: mark gr/1 ti/15.
      Expected: Error details shown in status message as only 13 tasks are being initialised for all groups (mentioned in Point 4 of List Task Feature).

  11. Marking a task as not done

    1. Test case: unmark gr/1 ti/1.
      Expected: If group 1 exists, marks task 1 as not done. List tasks of the group 1 in the status message.

    2. Test case: unmark gr/1 ti/14.
      Expected: Error details shown in status message as only 13 tasks are being initialised for all groups (mentioned in Point 4 of List Task Feature).

Saving data

  1. Students’ data are saved in the hard disk automatically after any command that changes the data. There is no need to save manually.

Editing the data file

  1. Students’ data are saved automatically as a JSON file [JAR file location]/data/addressbook.json.
    1. Advanced users are welcome to update data directly by editing that data file.
:exclamation: Caution: If your changes to the data file makes its format invalid, StudentConnect will discard all data and start with an empty data file at the next run. Hence, it is recommended to take a backup of the file before editing it.
