StudentConnect

Welcome to the StudentConnect User Guide! This comprehensive manual is designed to assist you in navigating the features of StudentConnect, a hassle-free team formation solution for CS2103T and CS2101 students to browse profiles and connect for the team project. Whether you're new to the platform or looking to enhance your understanding, this guide is tailored to meet your needs. To ensure a seamless experience, we recommend referring to the How to Use This Guide section before you get started. This section provides valuable insights on navigating the document, understanding icons and formatting, and optimising your overall journey.

Table of Contents

  1. How to Use This Guide
  2. Quick Start
  3. Features
    1. General Commands
      1. Viewing Help : help
      2. Clearing All Entries : clear
      3. Exiting The Program : exit
    2. Student Commands
      1. Adding a Student : add
      2. Listing All Students : list
      3. Editing a Student : edit
      4. Finding a Student by Name : find
      5. Filtering Students by Tutorial : filter
      6. Deleting a Student : delete
    3. Group Commands
      1. Creating a New Group : create
      2. Listing All Groups : listGroup
      3. Joining a Group : join

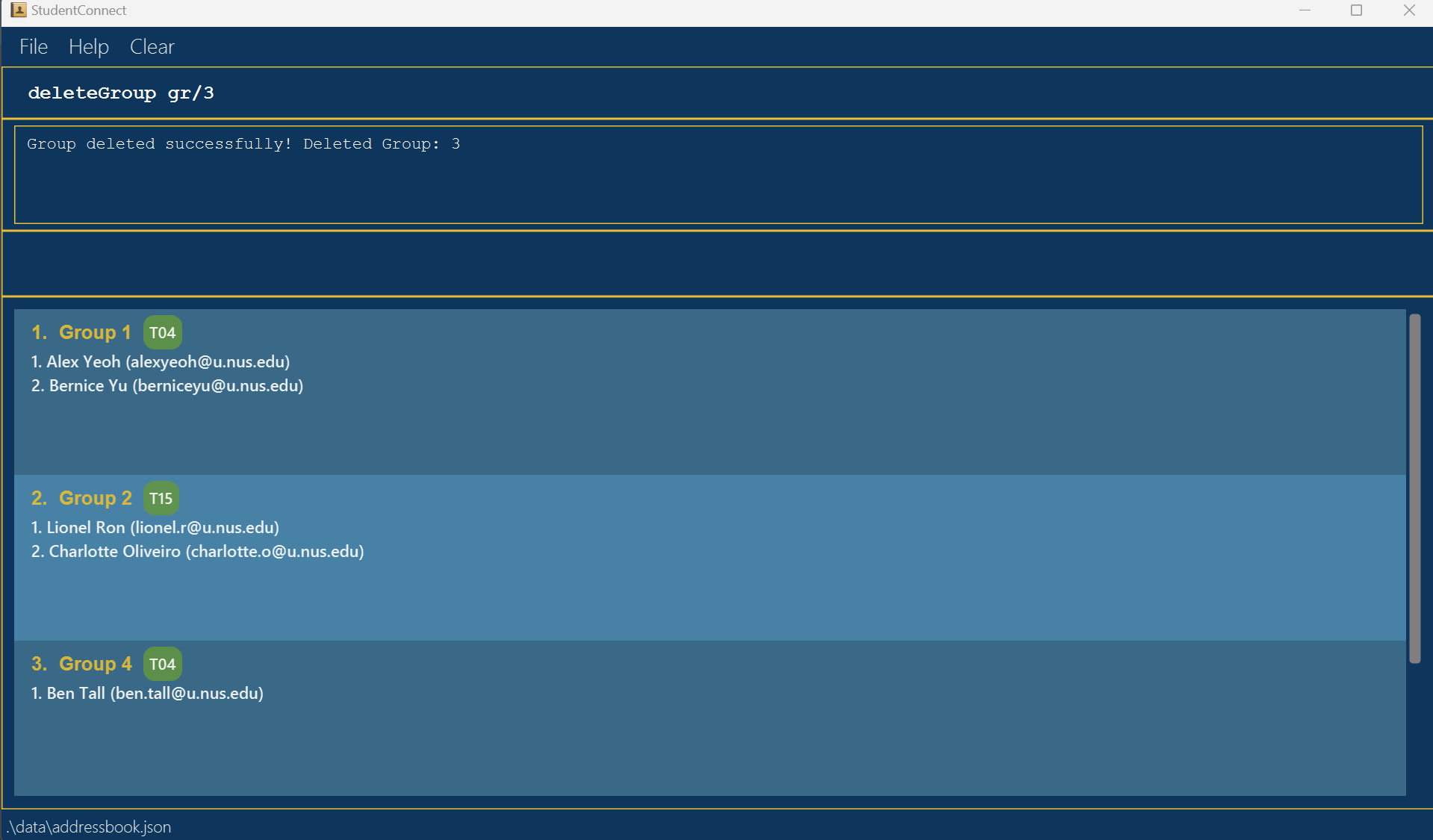

      4. Deleting a Group : deleteGroup
      5. Leaving a Group : leave

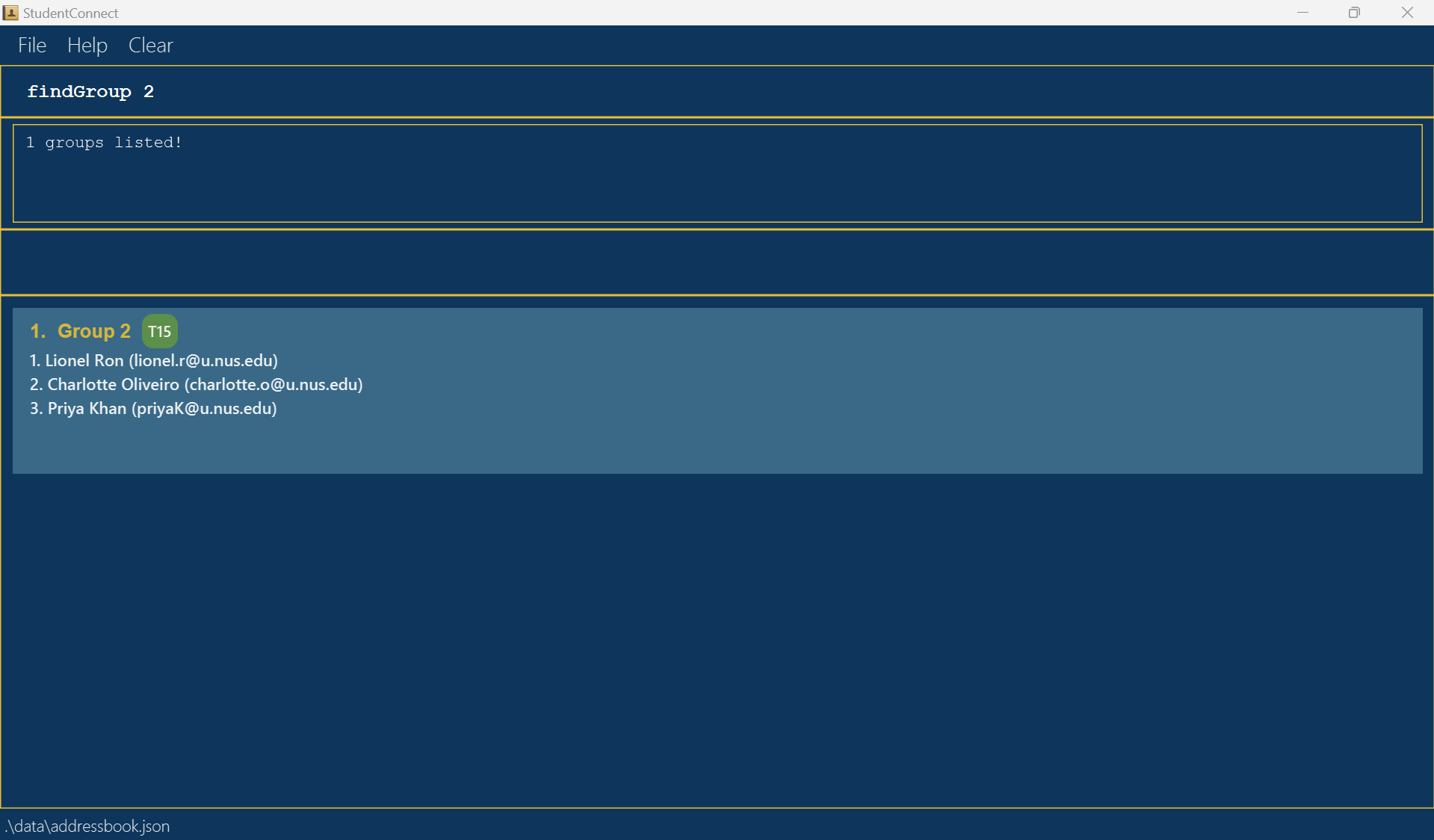

      6. Finding a Group by Group Number : findGroup
      7. Filtering Groups by Tutorial : filterGroup
      8. Checking a Group : checkGroup
      9. Listing All Tasks : tasks
      10. Marking a Task as Done : mark
      11. Marking a Task as Not Done : unmark
  4. Saving The Data
  5. Editing The Data File
  6. FAQ
  7. Known Issues
  8. Command Summary
  9. Appendix
  10. Glossary

How to Use This Guide

This guide is designed to help you navigate the features of StudentConnect with ease.

  • To assist you in understanding and using this manual effectively, we’ve included a symbol table that outlines the icons and notations you’ll encounter throughout the document.
Symbol Type Description
:information_source: Information This icon indicates additional information or context that can help you understand the features or requirements better.
:bulb: Tip Look for this symbol when you need helpful suggestions on using StudentConnect features more efficiently.
:exclamation: Important This alerts you to critical information or functionality within StudentConnect that you should pay close attention to.
  • Throughout this guide, we’ve provided screenshots that illustrate the expected output for each command and feature. This visual aid is designed to enhance your understanding and ensure that you can confidently anticipate the results of your actions. Below is a detailed overview of the various interface components that you’ll become familiar with.

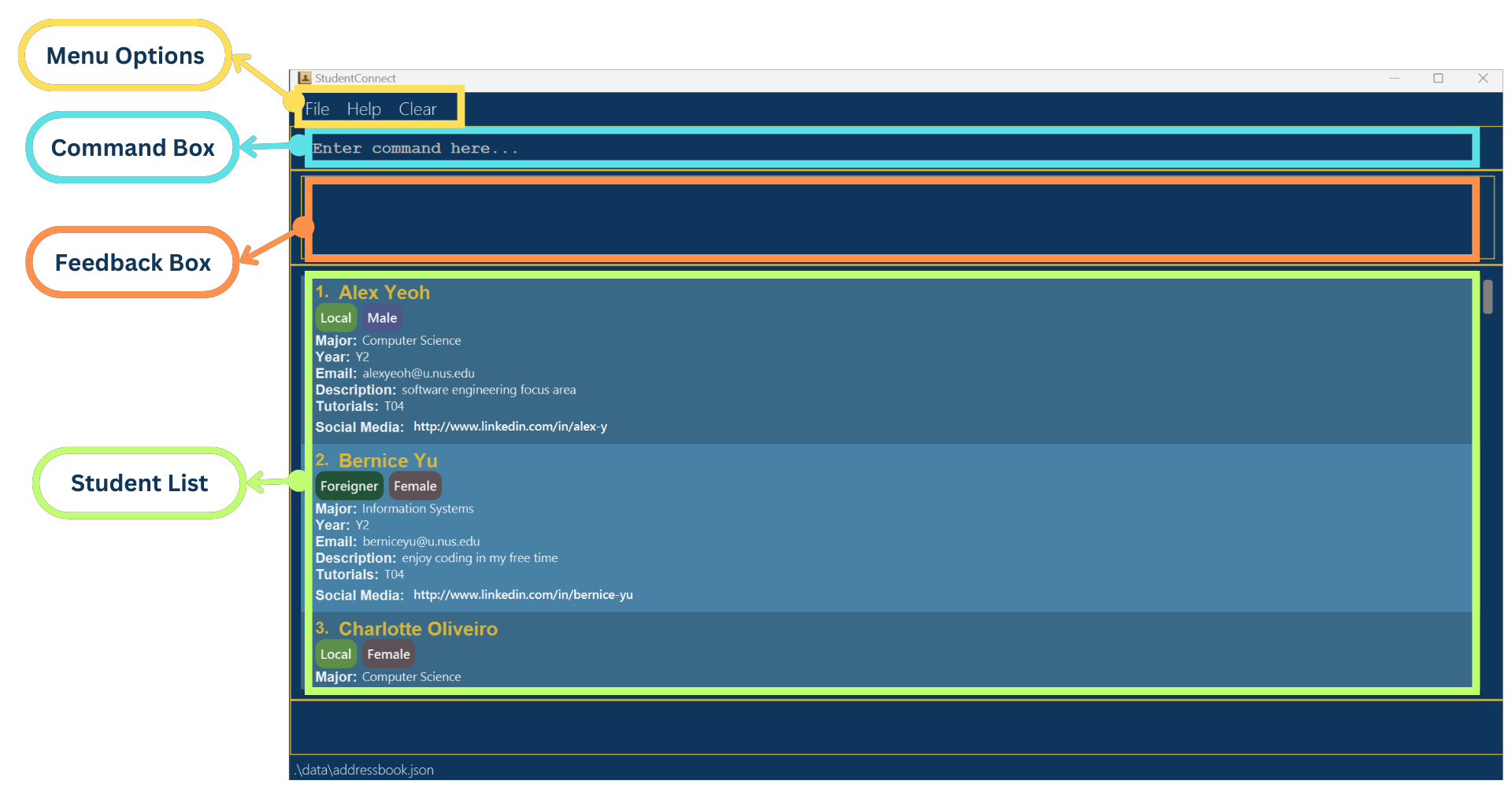

Student List View of StudentConnect
Figure 1: Student List View of StudentConnect

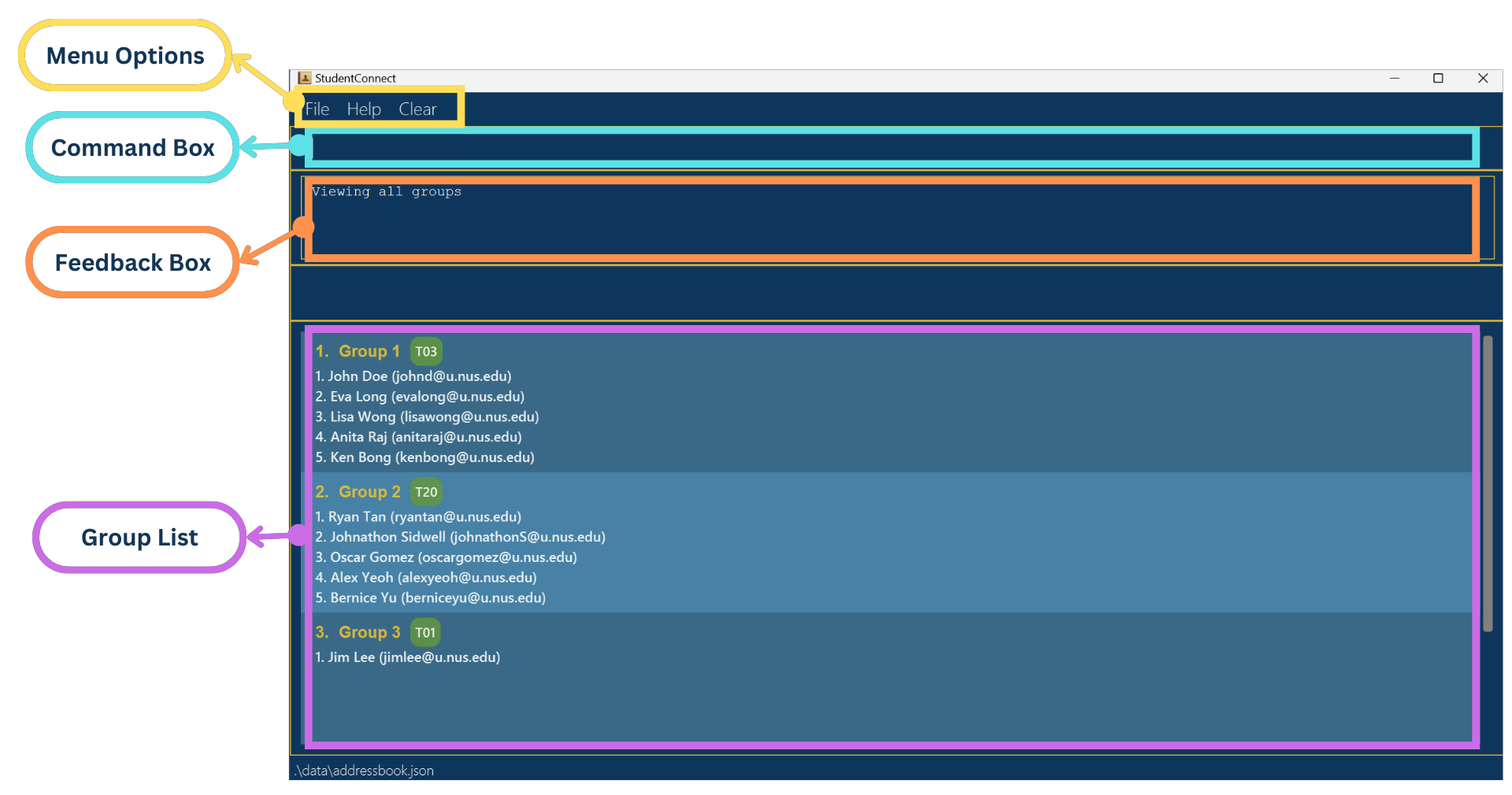

Group List View of StudentConnect
Figure 2: Group List View of StudentConnect
  1. Command Box: This is where you can enter any command for execution. After typing your command, press Enter to submit. If there is a syntax error or the command is unrecognisable, the text will turn red, prompting you to correct the command according to the specified requirements before pressing Enter again.
  2. Feedback Box: The feedback box is the area where the application communicates responses to your commands. It displays the correct command format if there is an input error, error messages when a command fails to execute, and the outcomes for commands like the tasks command.
  3. Student List: The student list panel displays a roster of all students and their associated details. Executing any student-related command will result in this panel being updated to show the relevant student list.
  4. Group List: Similar to the student list, the group list panel shows all existing groups along with their members and designated tutorials. Group-related commands will update this panel accordingly.
  5. Menu Options: The menu options provide quick access to general tasks within the application. Note that no messages are displayed in the feedback box when using the menu options.
:exclamation: Important: To guarantee that all your changes and data are saved correctly, it is strongly advised to type the exit command into the Command Box, instead of selecting exit from the menu options or closing the application window directly. This practice helps prevent data loss and ensures a proper shutdown of the application.
  • For convenient navigation throughout this UG, you can refer to the table of contents.
  • Should you encounter any terminology within the guide that is unfamiliar, you can consult the glossary section below. It provides clear definitions and explanations to help you grasp the specialised language used throughout this guide.
  • For any inquiries, the faq section is a good place to look for answers. In case your question is not addressed there, do not hesitate to submit an issue here for further assistance.
  • The appendix section is included to detail all possible input values for fields that have specific constraints or require particular formats. This reference can help ensure that you input data correctly and understand the limitations of each field.
  • For a quick and compact overview of all the commands that StudentConnect offers, refer to the command summary. This section servers as a handy reference for all possible actions you can perform within the application, laid out in an easily digestible format.

Back to Table of Contents

Quick Start

  1. Ensure you have Java 11 or above installed in your Computer. If not, you can download Java 11 from here.

  2. Download the latest studentconnect.jar from here.

  3. Copy the file to the folder you want to use as the home folder for your StudentConnect.

  4. Open a command terminal, and type cd to change the current working directory into the folder you put the jar file in. Use the java -jar studentconnect.jar command to run the application.
    A GUI similar to the below should appear in a few seconds. Note how the app contains some sample data.
    Ui

  5. Type the command in the command box and press Enter to execute it. e.g. typing help and pressing Enter will open the help window.
    Some example commands you can try:

    • list :
      • Lists all students in the StudentConnect system.
    • add n/John Doe m/Computer Science y/2 e/johnd@u.nus.edu d/I love programming in my free time t/02 t/17 t/20 sm/https://www.linkedin.com/in/john-doe-123456789 nt/local g/m :
      • Adds a student named John Doe and his details to the StudentConnect system.
    • delete EMAIL :
      • Deletes the student with the corresponding email.

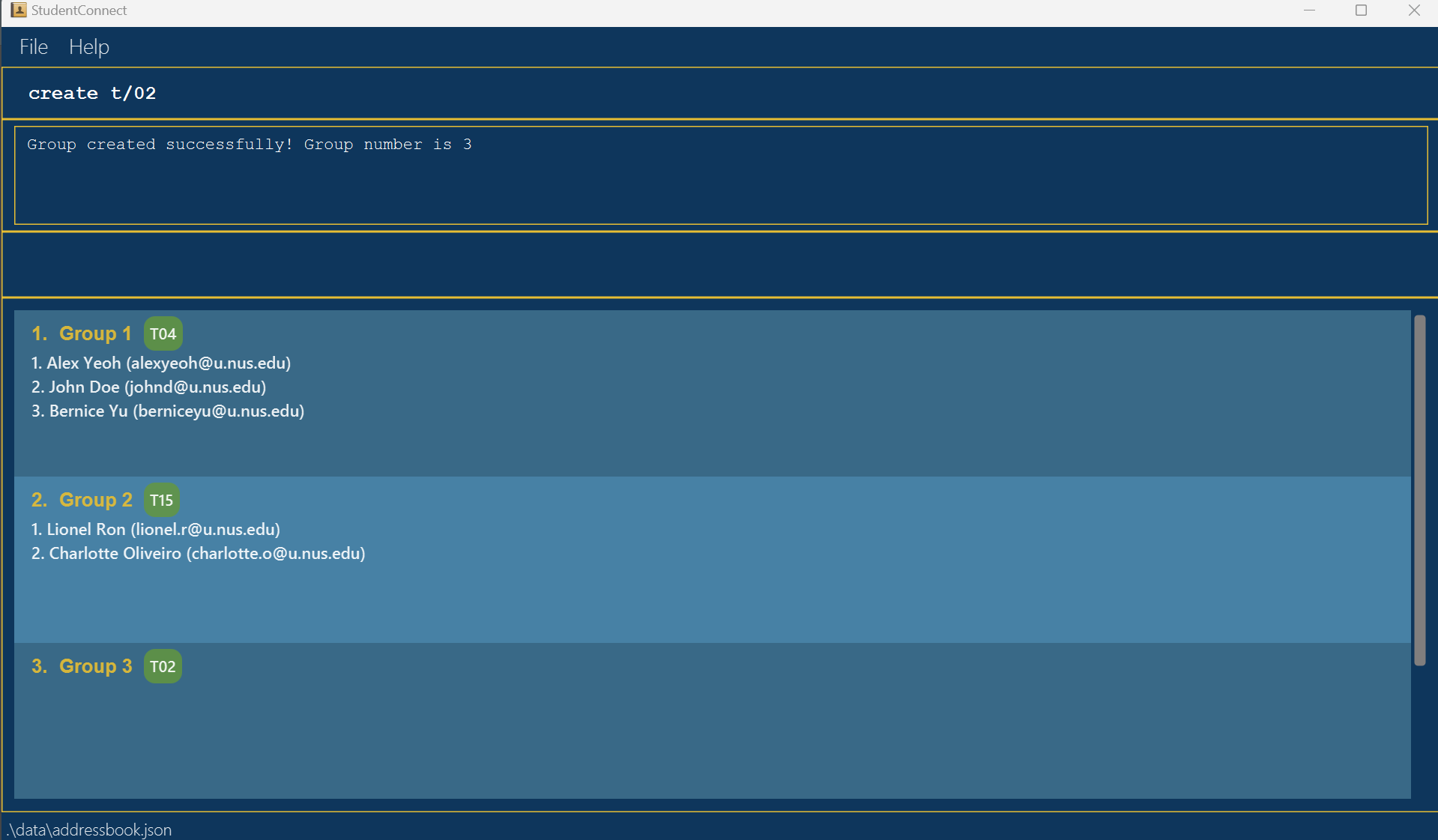

    • create t/03 :
      • Creates a new group assigned to tutorial 3.
    • clear :
      • Deletes all data from the system (i.e. students, groups, and tasks).
    • exit :
      • Exits the app.

  6. Refer to the Features below for details of each command.

Back to Table of Contents

Features

:information_source: Notes about the command format:

  • Words in UPPER_CASE are the parameters to be supplied by you.
    e.g. in add n/NAME, NAME is a parameter which can be used as add n/John Doe.

  • Items in square brackets are optional.
    e.g. n/NAME [t/TUTORIALS] can be used as n/John Doe t/02 or as n/John Doe.

  • Items with …​ after them can be used multiple times including zero times.
    e.g. [t/TUTORIALS]…​ can be used as   (i.e. 0 times), t/03, t/11 t/20 etc.

  • Parameters can be in any order.
    e.g. if the command specifies n/NAME m/MAJOR, m/MAJOR n/NAME is also acceptable.

  • Extraneous parameters for commands that do not take in parameters (such as help, list, exit and clear) will be ignored.
    e.g. if the command specifies list 123, it will be interpreted as list.

  • Commands must be in lower case.
    e.g. list is a valid command, but LIST is not.

  • If you are using a PDF version of this document, be careful when copying and pasting commands that span multiple lines as space characters surrounding line-breaks may be omitted when copied over to the application.

Back to Table of Contents

General Commands

:exclamation: Important: StudentConnect provides a set of general commands to make it more convenient for you to navigate the app.

Viewing Help : help

Shows a message explaining how to access the help page in the user guide and a button to copy the link.
Provides a list of requirements for forming a group in CS2103T/CS2101.

Format: help

Expected Output:

  • GUI: Help window opened with help message, copy button and requirement message.
  • Message: Opened help window.

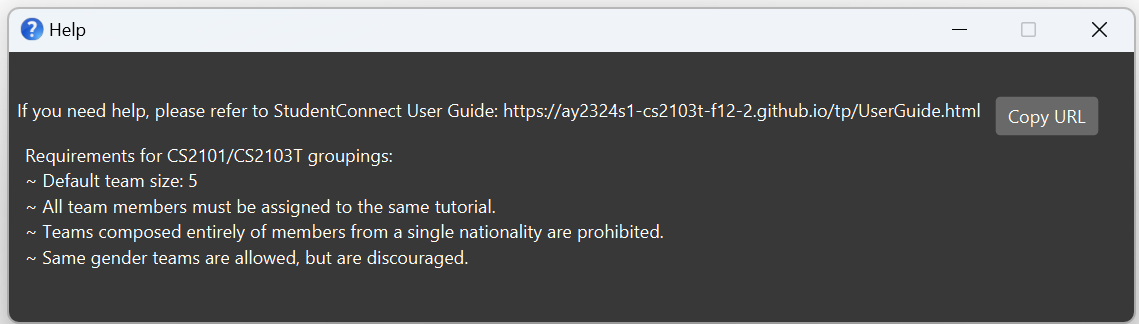

help message

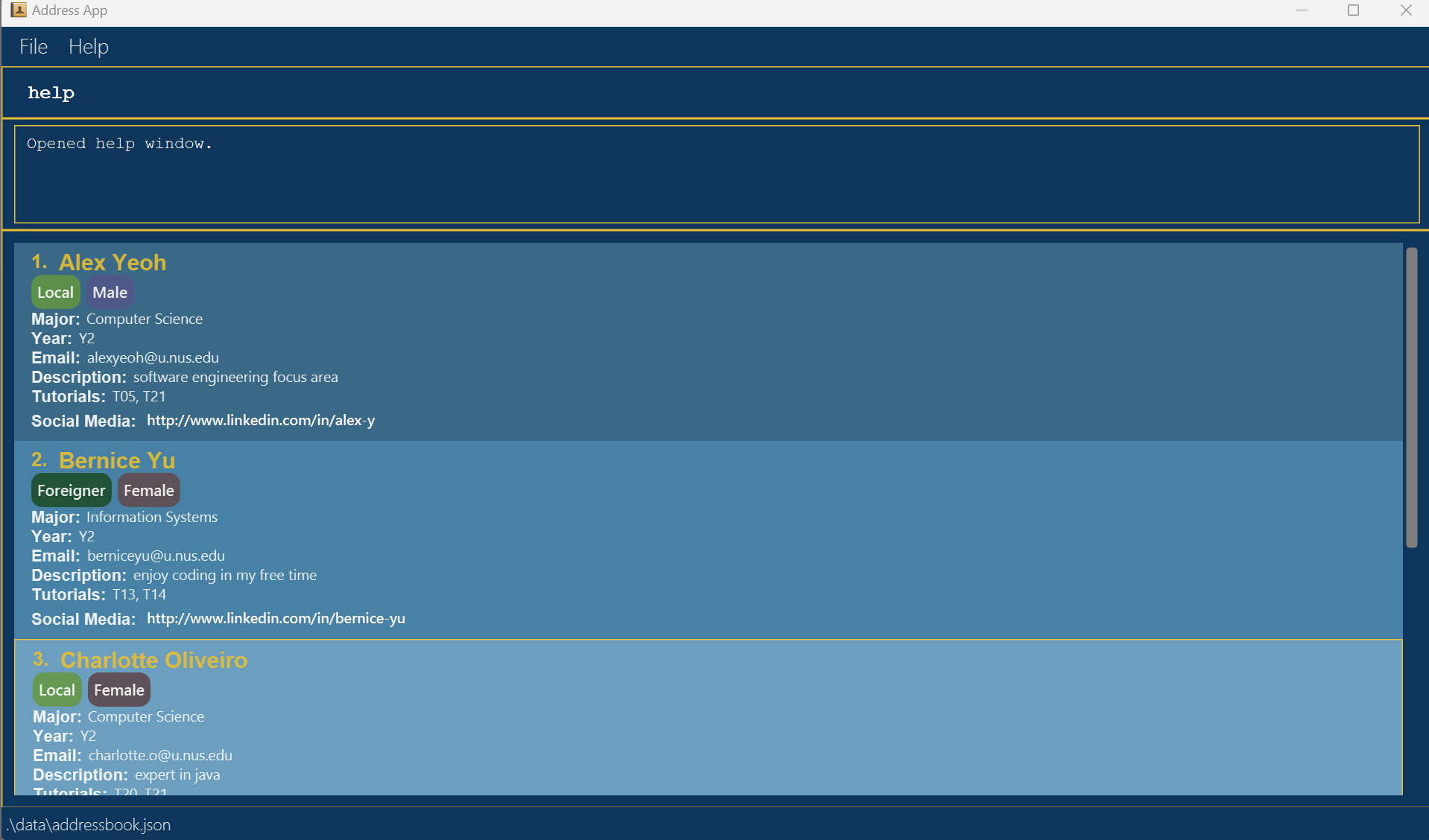

help window

Clearing All Entries : clear

Clears all entries from the system upon confirmation in the pop-up.

Format: clear

  • Confirmation Pop-up opened.
  • Message: Opened confirmation window. Please ensure you use the exit command when exiting StudentConnect for successful reset.

Expected Output (Success):

  • GUI: All students’ details are removed from the student list.

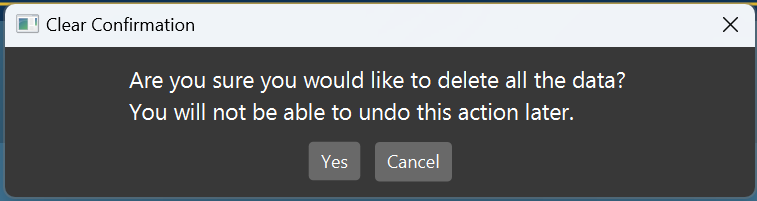

result for 'clear' pop-up

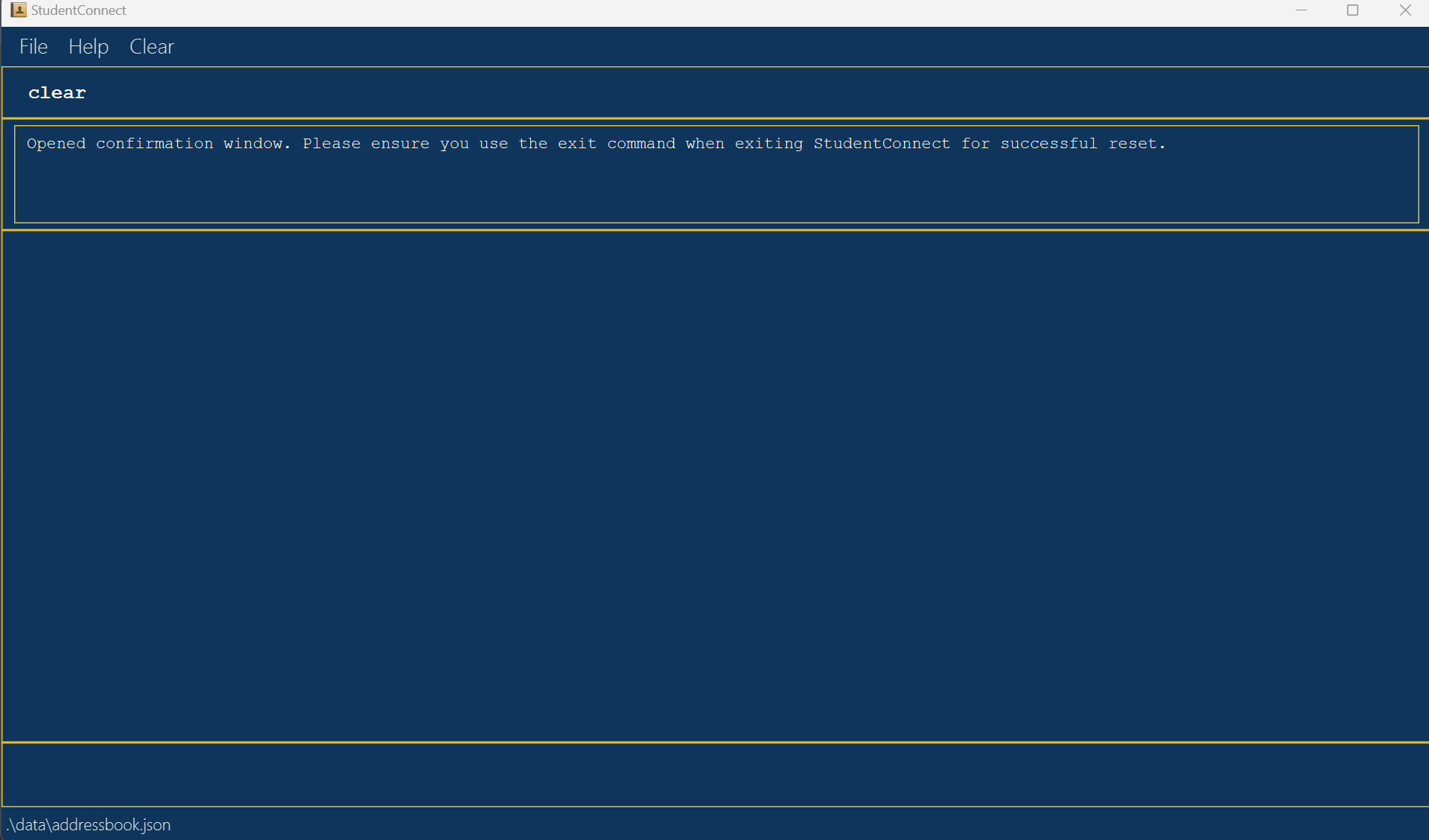

result for 'clear' GUI

Expected Output (Failure or Cancellation):

  • Case: Clear command fails.
  • Case: You press cancel on the confirmation pop-up.
    GUI: All students’ details remain on the student list.

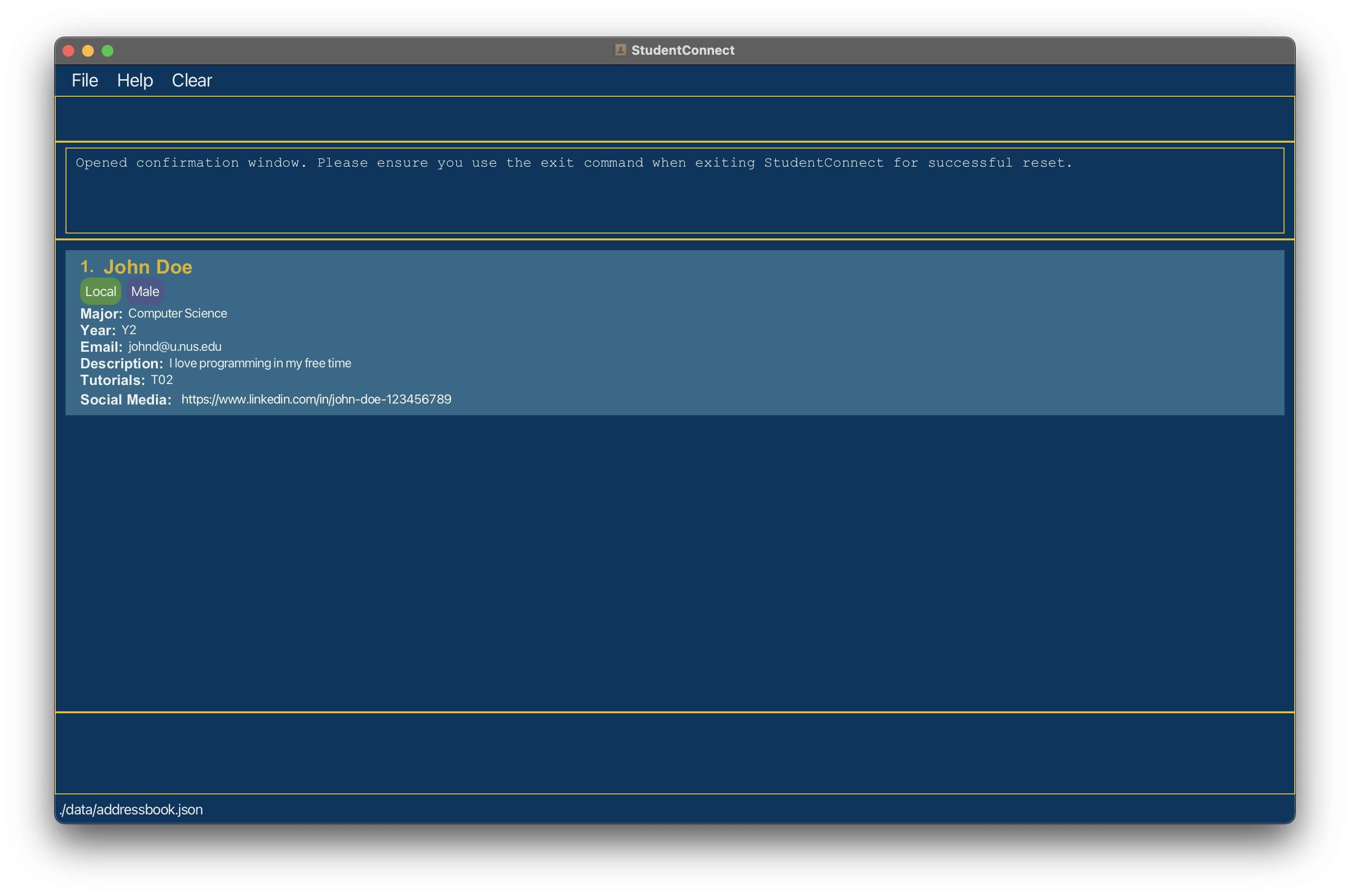

result for cancelled 'clear' GUI

Exiting The Program : exit

Exits the program.

Format: exit

Expected Output (Success):

  • GUI: Application window closes.
  • Message (before closing): Thank you for using StudentConnect! Exiting the application now…

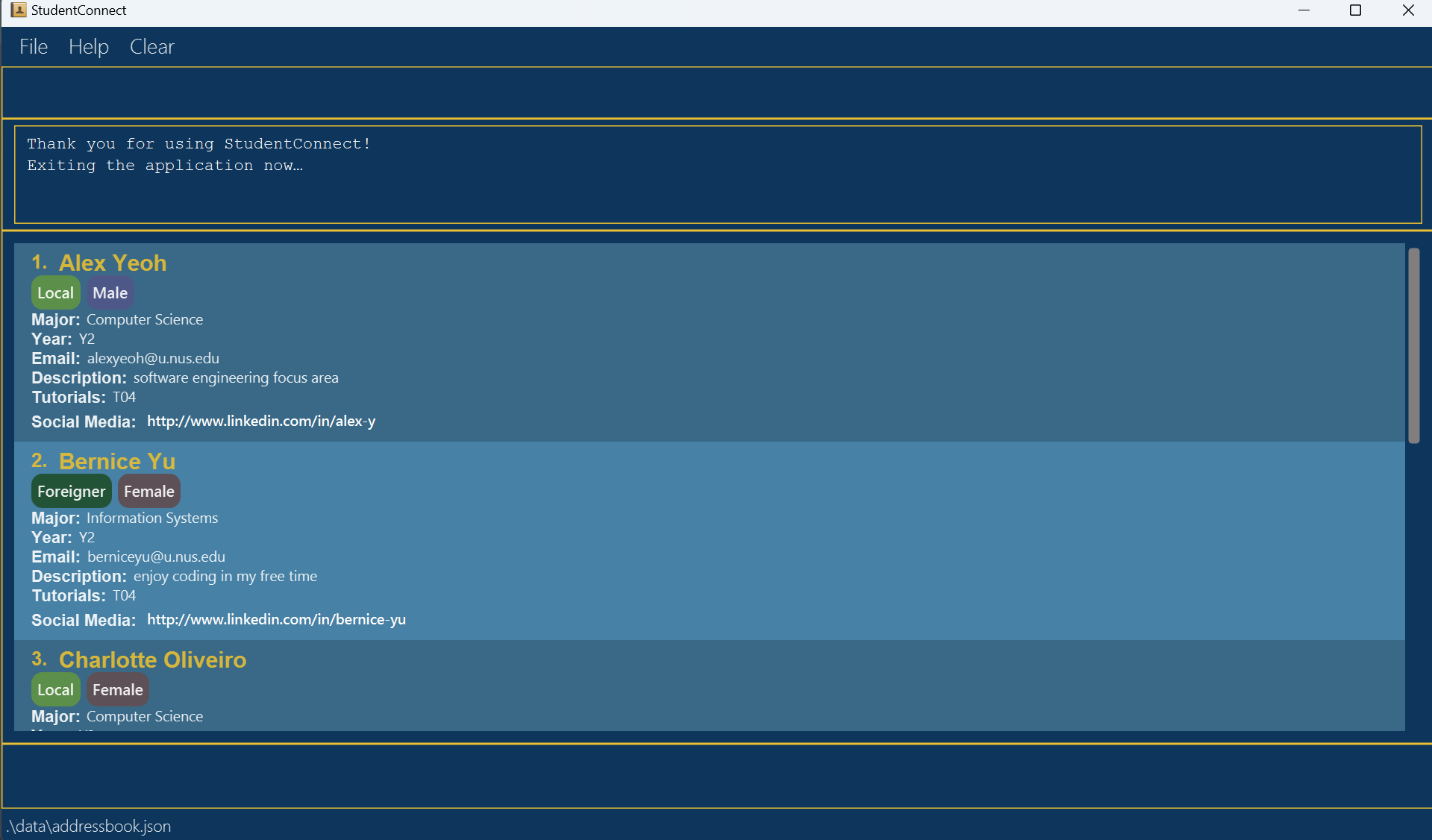

Exit

Expected Output (Failure):

  • Message: Error: Exiting the program failed.

Back to Table of Contents

Student Commands

:exclamation: Important: StudentConnect provides a set of student information to make it more convenient for students to connect with others.

Adding a Student : add

Adds a student to the system.

Format: add n/NAME m/MAJOR y/YEAR e/EMAIL d/DESCRIPTION [t/TUTORIALS]… [sm/SOCIALMEDIA]… nt/NATIONALITY g/GENDER

:bulb: Tip: Including social media links and tutorial groups are optional.
:bulb: Tip: A student can include multiple tutorial groups they are interested in. Add multiple tutorial groups by using t/ repeatedly.
:bulb: Tip: A student can have any number of social media links. Add multiple social media links by using sm/ repeatedly.

Examples:

  • add n/John Doe m/Computer Science y/2 e/johnd@u.nus.edu d/I’m a Frontend Developer t/06 t/19 sm/https://www.linkedin.com/in/john-doe-123456789 nt/local g/m
  • add n/Betsy Crowe m/Computer Science y/2 e/betsycrowe@u.nus.edu d/I’m adept at Backend technologies t/05 nt/foreigner g/f

Acceptable Values:

  • Name: Full names with alphabetical characters. Maximum 30 characters.
  • Major: Valid major names at NUS. View the valid majors list below for more information.
  • Year: Numeric year level. Accept values between 1 and 6 inclusive.
  • Email: Valid email address ending in @u.nus.edu. Maximum 20 characters.
  • Description: Maximum 150 characters.
  • Tutorials: Two digit integers between 01 and 22 inclusive. Multiple tutorial slots can be added by using t/ repeatedly.
  • Social Media Link: Valid URL format to social media account. It must start with https://. Multiple URLs can be added by using sm/ repeatedly.
  • Nationality: Either local or foreigner.
  • Gender: A single character, either m or f.

Expected Output (Success):

  • GUI: New student entry added in the main student list.
  • Message: Details added successfully! New student added: (details of new student).

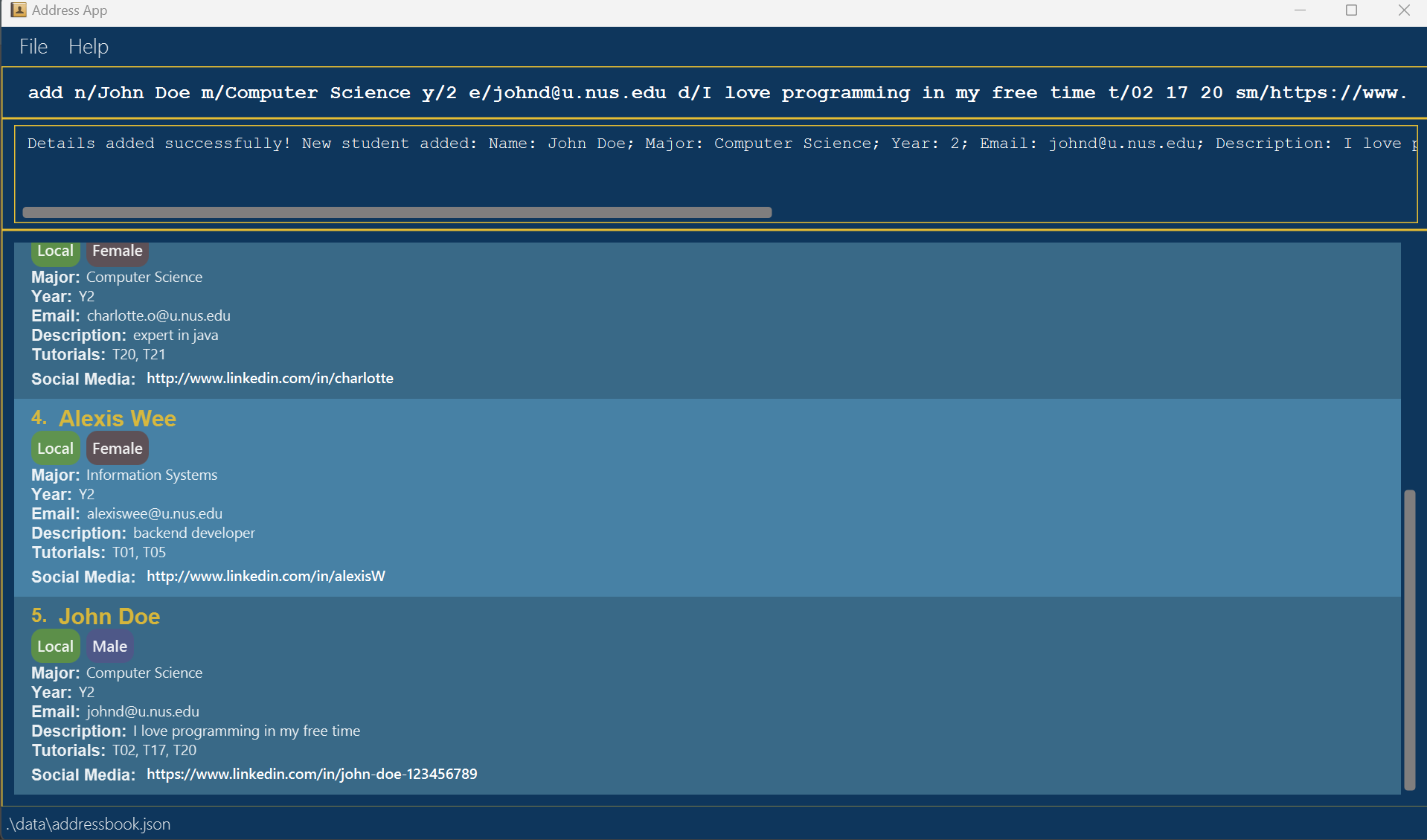

Add feature

Note:

  • Social media links can be clicked.
  • The link will be opened on a browser upon clicking.

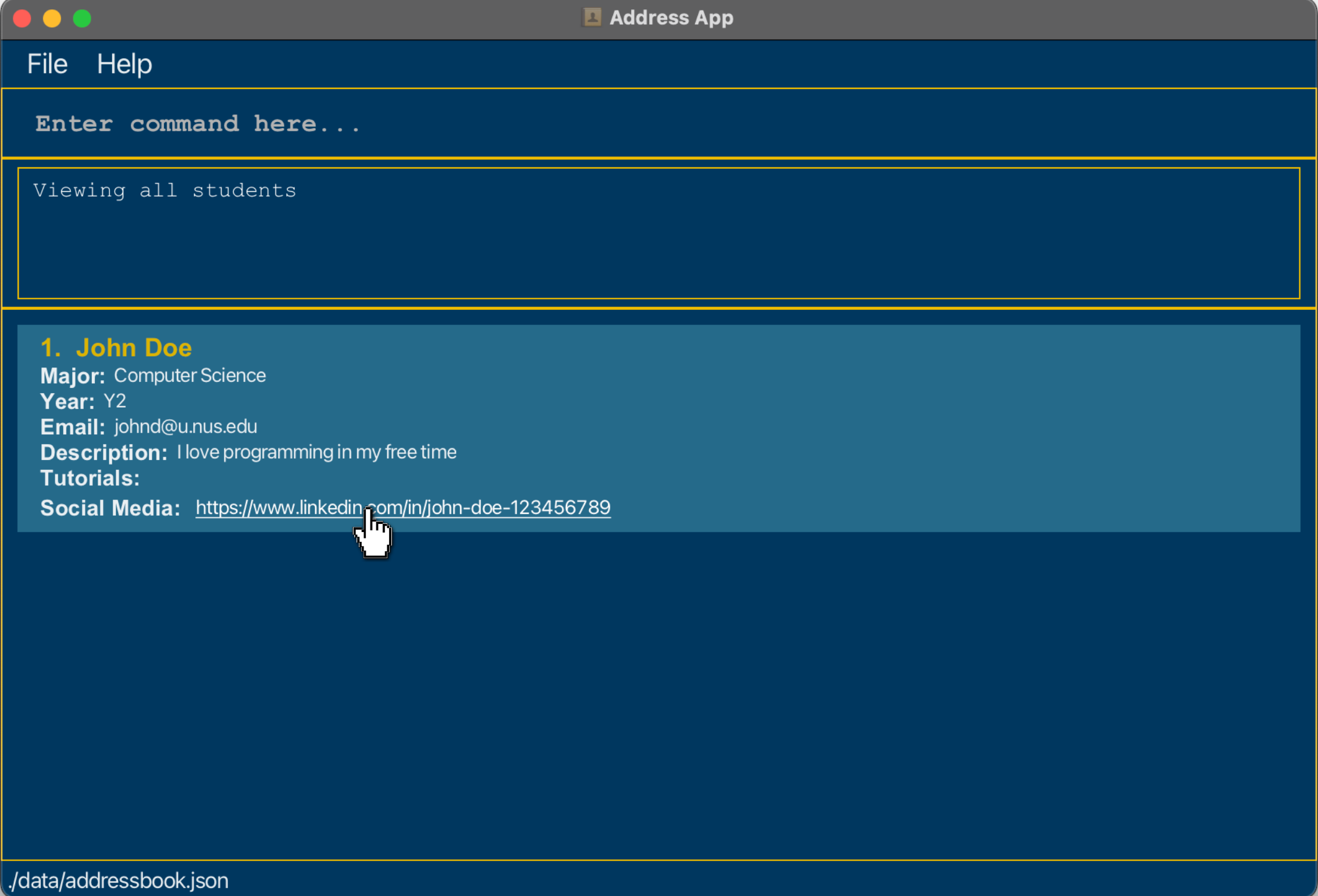

social_media

Output with a single social media link

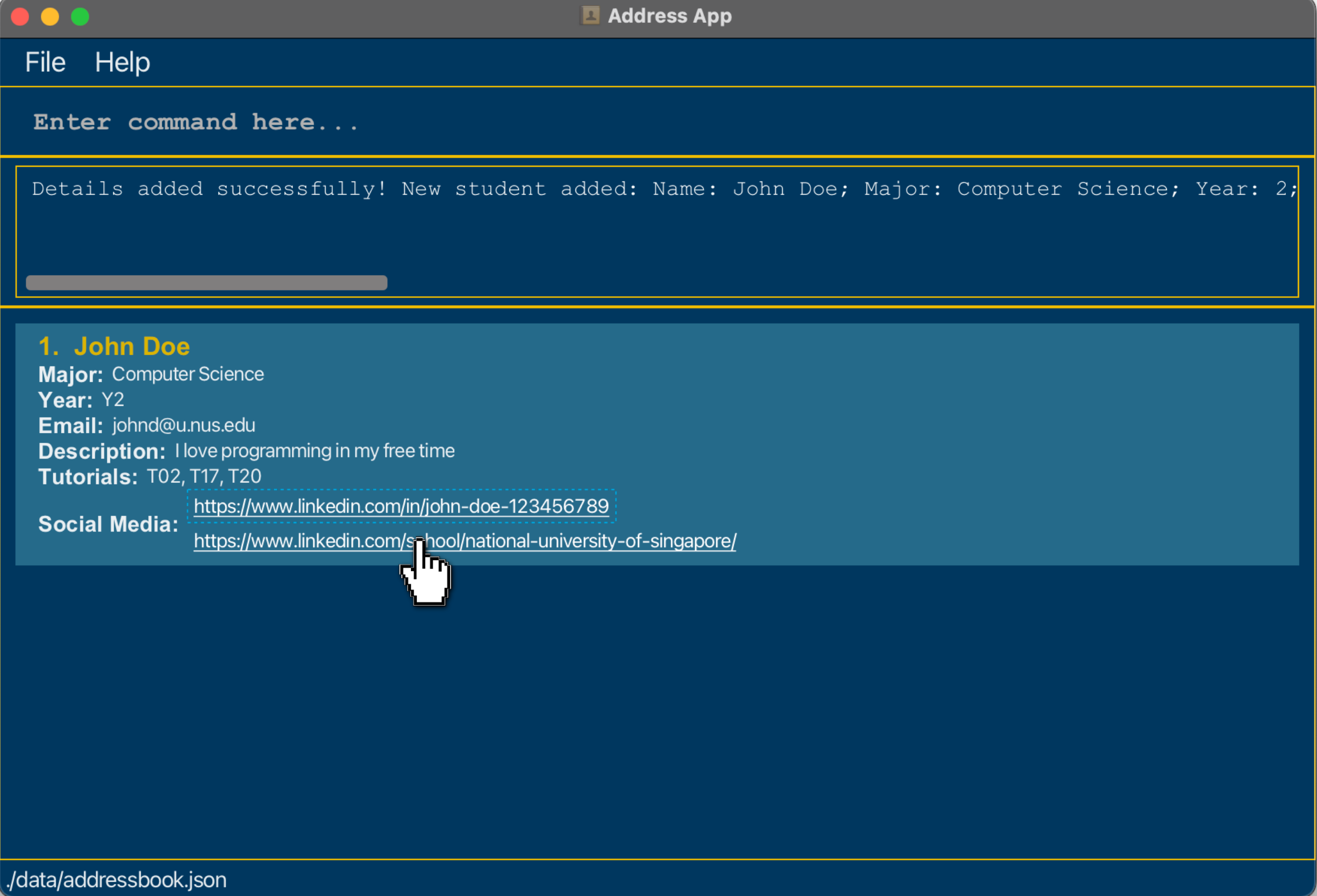

social_media

Output with multiple social media links

Expected Output (Failure):

  • Case: Invalid command format, e.g. add, add 1, etc.
    Message: Invalid command format! add: Adds a student to StudentConnect.
    Parameters: n/NAME m/MAJOR y/YEAR e/EMAIL d/DESCRIPTION [t/TUTORIALS]... [sm/SOCIAL_MEDIA_LINK]... nt/NATIONALITY g/GENDER
    Example: add n/John Doe m/Computer Science y/2 e/johnd@u.nus.edu d/I love programming in my free time
    t/02 sm/https://www.linkedin.com/in/john-doe-123456789 nt/local g/M;

Listing All Students : list

Shows a list of all students in the system.

Format: list

Expected Output (Success):

  • GUI: List of all student entries in the system.
  • Message: Viewing all students

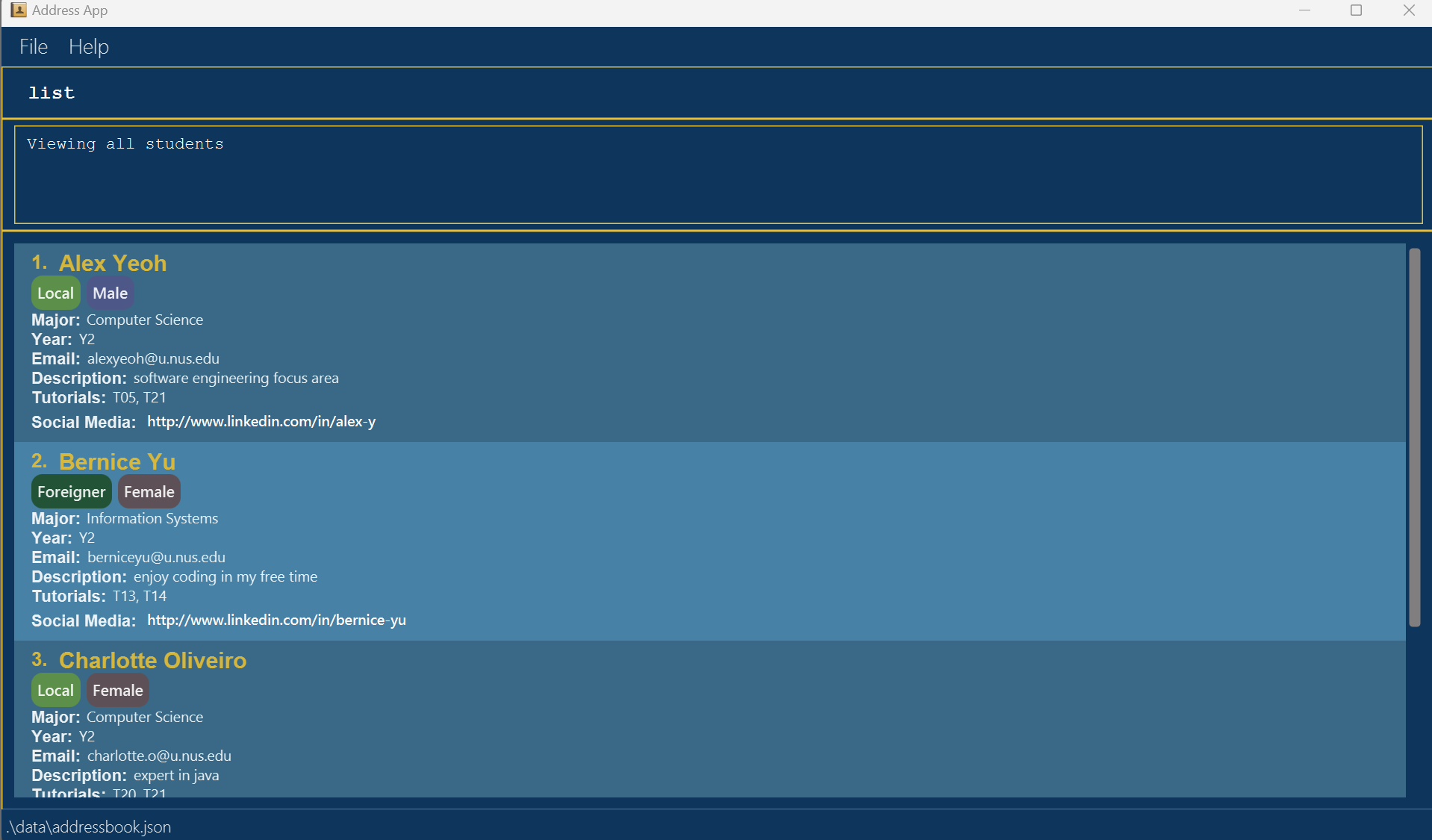

sample result for 'list'

Expected Output (Failure):

  • Message: Error: Unable to retrieve student entries. Please try again.

Editing a Student : edit

Edits an existing student in the system.

Format: edit EMAIL [n/NAME] [m/MAJOR] [y/YEAR] [e/EMAIL] [d/DESCRIPTION] [t/TUTORIALS]…​ [sm/SOCIALMEDIA]…​ [nt/NATIONALITY] [g/GENDER]

  • Edits the student with the specified EMAIL.
  • At least one of the optional fields must be provided.
  • Existing values will be updated to the input values.
  • When editing tutorials, the existing tutorials of the student will be removed i.e. adding of tutorials is not cumulative.
  • When editing social media, the existing social media of the student will be removed i.e. adding of social media is not cumulative.
  • You can remove all the student’s social media by typing sm/ without specifying any social media after it.
:bulb: Tip: A student can edit to include multiple tutorial groups they are interested in. Add multiple tutorial groups by using t/ repeatedly.
:bulb: Tip: A student can edit to have any number of social media links. Add multiple social media links by using sm/ repeatedly.

Examples:

  • edit johnd@u.nus.edu y/3 e/johndoe@u.nus.edu Edits the year and email address of the student with the email johnd@u.nus.edu to be 3 and johndoe@u.nus.edu respectively.
  • edit betsycrowe@u.nus.edu n/Betsy Crower sm/ Edits the name of the student with the email betsycrowe@u.nus.edu to be Betsy Crower and clears all existing social media.

Acceptable Values:

  • EMAIL: a previously registered email address ending in @u.nus.edu.

Expected Output (Success):

  • GUI: Student details updated in the student list.
  • Message: Details edited successfully! Edited Student: [Updated data]

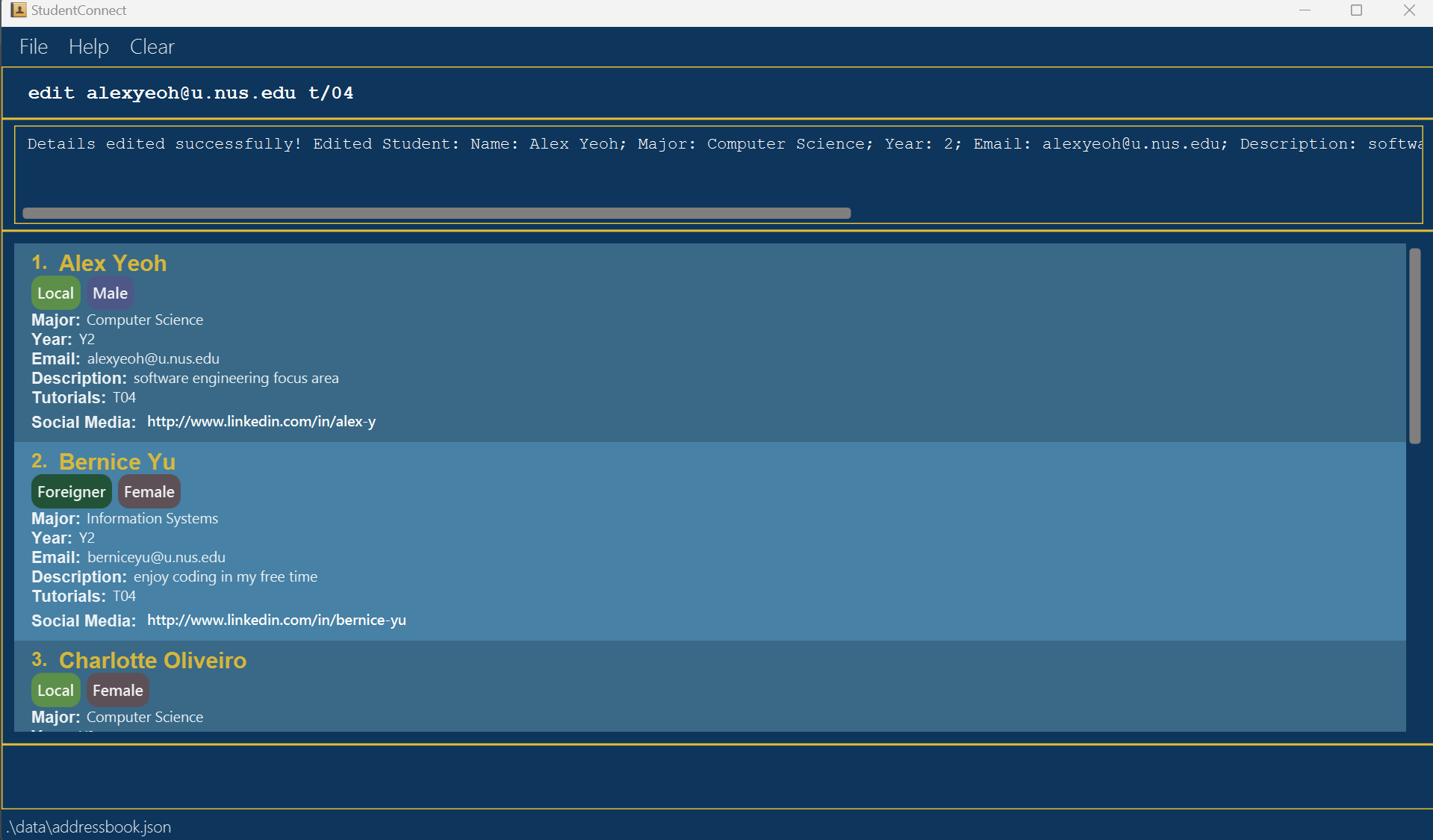

sample result for 'edit'

Expected Output (Failure):

  • Case: No fields provided for edit.
    Message: At least one field to edit must be provided.
  • Case: Email not found in the system.
    Message: Student with the provided email not found.

Finding a Student by Name : find

Finds student(s) whose name(s) contain any of the given keywords.

Format: find KEYWORD [MORE_KEYWORDS]…​

  • The search is case-insensitive. e.g. john will match John.
  • The order of the keywords does not matter. e.g. John Doe will match Doe John.
  • Only the name is searched.
  • Partial words can be matched. e.g. John will match Johnny.
  • Students matching at least one keyword will be returned (i.e. OR search). e.g. John Crowe will return John Doe, Betsy Crowe.

Examples:

  • find John returns john, John Doe and Johnny Wee.
  • find john betsy returns John Doe, Betsy Crowe.

Expected Output (Success):

  • GUI: List of all student entries whose name(s) match the keyword(s) in the system.

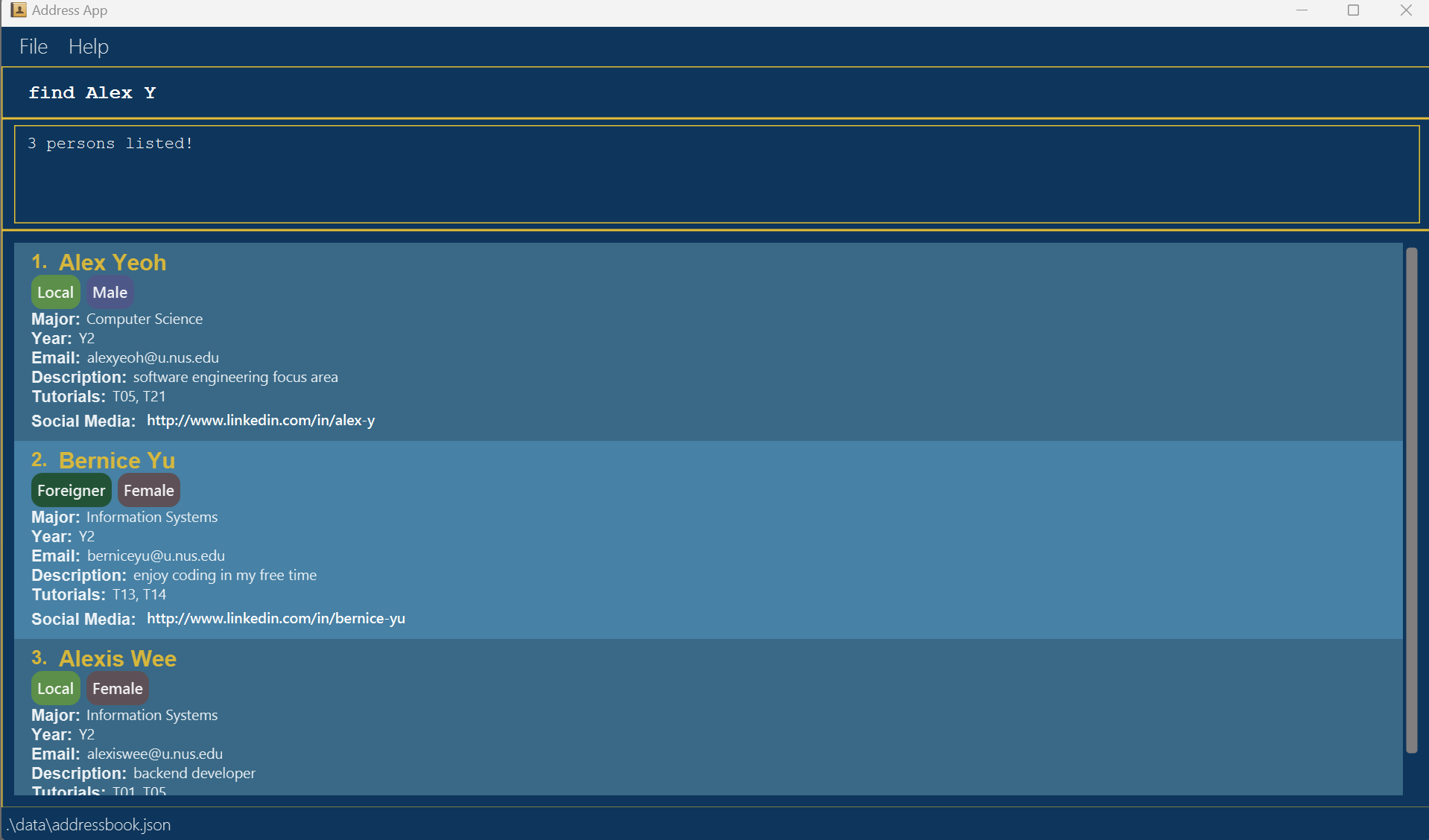

result for 'find alex'

Expected Output (Failure):

  • Case: Invalid command format, e.g. find.
    Message: Invalid command format!
    find: Finds all students whose names contain any of the specified keywords (case-insensitive) and displays them as a list with index numbers.
    Parameters: KEYWORD [MORE_KEYWORDS]...
    Example: find alice bob charlie

Filtering Students by Tutorial : filter

Filters students by tutorial based on the given slots.

Format: filter SLOT [MORE SLOTS]…​

  • The slots must be 2-digit numbers between 01 and 22 inclusive.
  • Tutorials are only accepted as 2-digits, i.e. 3 is not a valid tutorial, but 03 is.
  • The order of the slots does not matter. e.g. 08 15 will match 15 08.
  • Only the tutorial is searched.
  • Students matching at least one tutorial slot will be returned (i.e. OR search). e.g. 03 12 will return 03 16, 04 12.

Examples:

  • filter 10 returns students in T10, T06 T10 and T10 T18.
  • filter 12 16 returns students in T05 T12, T16 T22.

Expected Output (Success):

  • GUI: List of all student entries whose tutorial(s) match the slot(s) in the system.

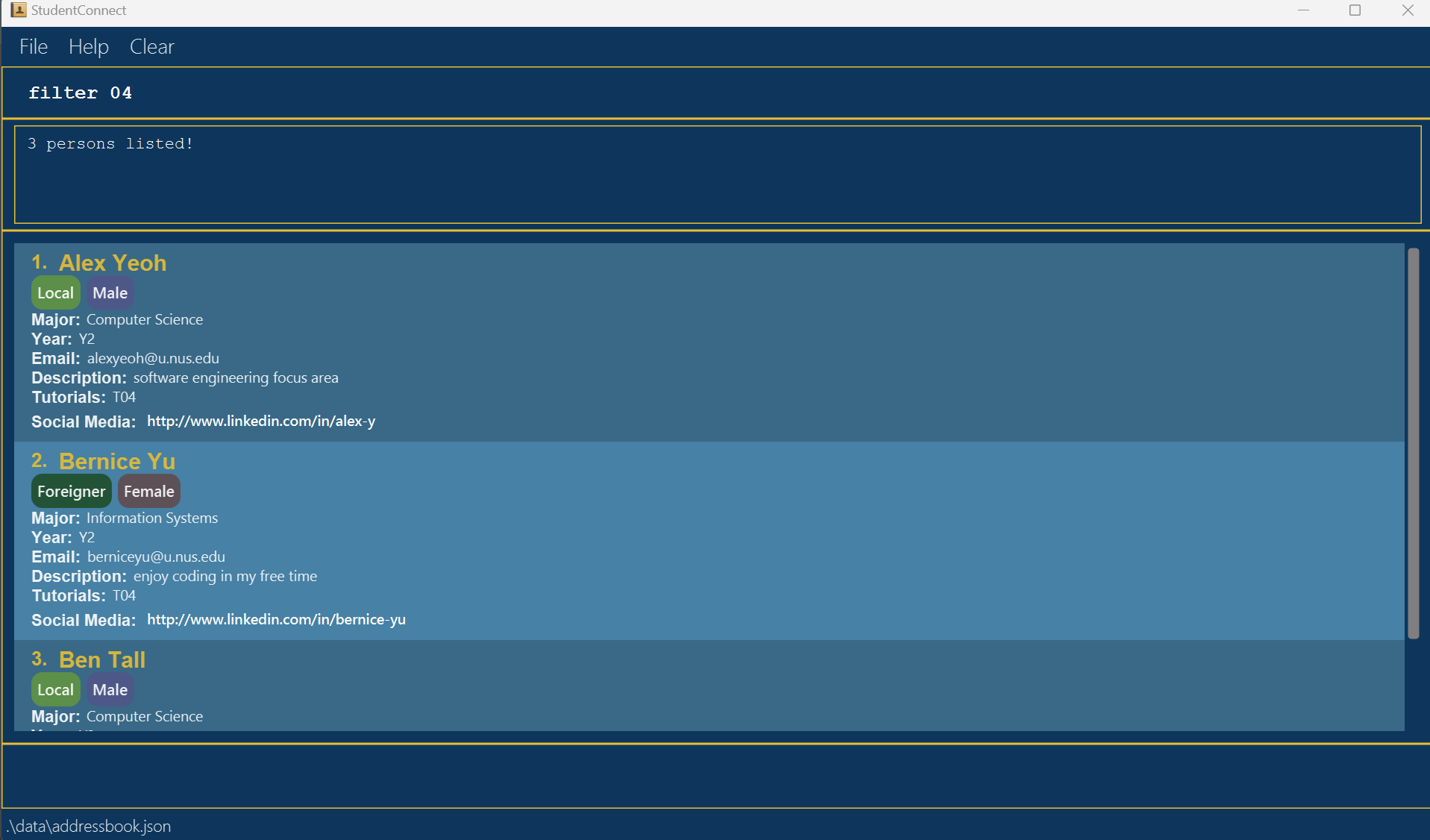

result for 'filter 04'

Expected Output (Failure):

  • Case: Invalid command format, e.g. filter.
    Message: Invalid command format!
    filter: Filters all students whose tutorials match any of the specified slots (2-digit numbers between 01 and 22) and displays them as a list with index numbers.
    Parameters: SLOT [MORE_SLOTS]...
    Example: filter 08 15
  • Case: Invalid slot(s) is provided, e.g. filter 25, filter 0, etc.
    Message: Tutorials should be 2-digit numbers between 01 and 22.

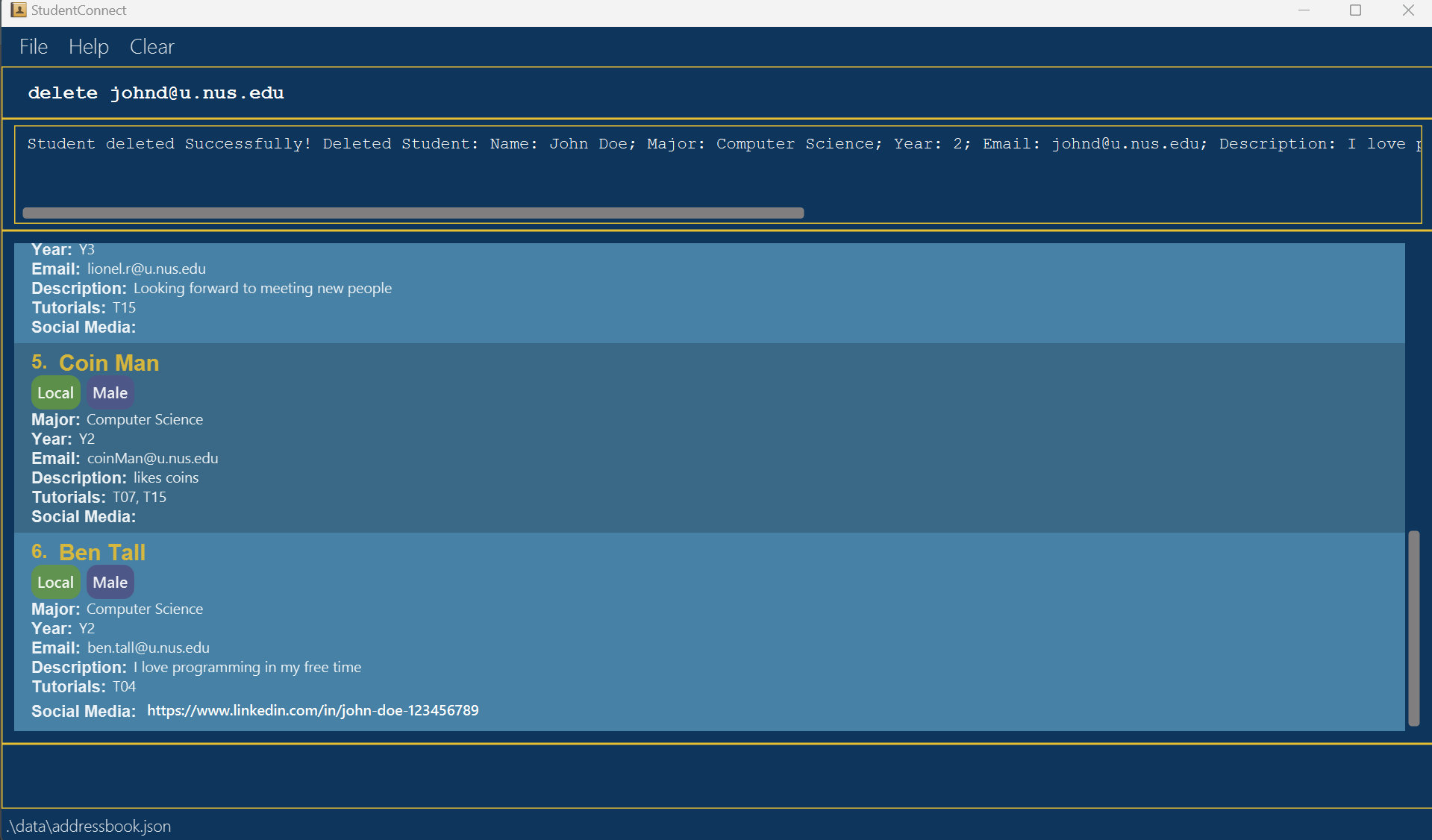

Deleting a Student : delete

Deletes a specific student and all personal details based on email.

Format: delete EMAIL

  • Deletes the student with the specified EMAIL.
  • The email must be registered in the system.

Examples:

  • list followed by delete alexy@u.nus.edu deletes Alex Yeo from the system.

Acceptable Values:

  • EMAIL: a previously registered email address ending in u.nus.edu.

Expected Output (Success):

  • GUI: Student details removed from student list.
  • Message: Student deleted successfully! [Deleted student's details]

Delete feature

Expected Output (Failure):

  • Case: Provided email not registered in system.
    Message: Student with the provided email not found.
  • Case: Invalid command format e.g. delete 02.
    Message: Invalid command format!
    delete: Deletes the student identified by the email address.
    Parameters: EMAIL
    Example: delete alexyeoh@u.nus.edu

Back to Table of Contents

Group Commands

:exclamation: Important: StudentConnect provides a set of group formation features to make it more convenient for students to find group mates. A group consists of 3 main components: a group number, a tutorial number and the group members.
Group number: Used to uniquely identify the group.
Tutorial number: This number is set by the creator of the group and serves as an indication of which tutorial class the members of the group are interested in enrolling in. It does not restrict students who do not have a matching tutorial number in their profile from joining the group. Running the checkGroup command displays a warning if there are members whose tutorial numbers do not match the group’s tutorial number.
Group members: The students who are members of this group.

Creating a New Group : create

Creates a new empty group with the given tutorial number. The group number is automatically assigned and is used to uniquely identify each group. The tutorial number serves as an indication of which tutorial class the members of the group are interested in enrolling in. This can provide information about the tutorial preferences of the group members, to other students who are looking for a group to join.

Format: create t/TUTORIAL

Expected Output (Success):

  • GUI: A new empty group, with a group number, is created.
  • Message: Group created successfully! Group number is [GROUP_NUMBER]

Sample result for create

Expected Output (Failure):

  • Case: Invalid command format, e.g. create, create 02, etc.
    Message: Invalid command format!
    create: Creates a new empty group.
    Parameters: t/TUTORIAL Example: create t/02
  • Case: Invalid tutorial number is provided, e.g. create t/0, create t/25, etc.
    Message: Tutorials should be 2-digit numbers between 01 and 22.

Listing All Groups : listGroup

Displays a list of all groups. For each group, the group number, and the names and emails of the members are shown.

Format: listGroup

Expected Output (Success):

  • GUI: A list of all groups that are in the system is shown.
  • Message: Viewing all groups

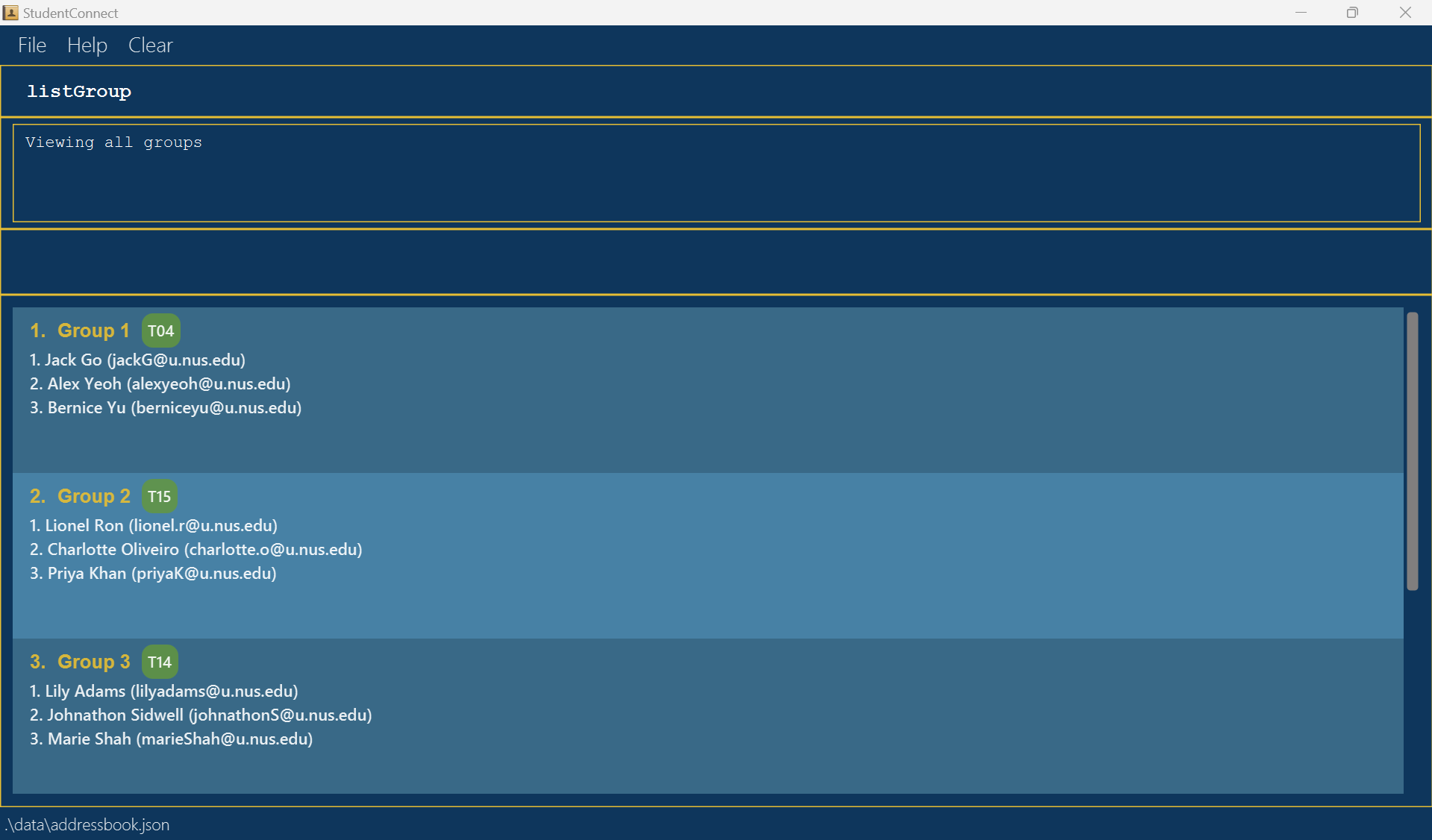

Sample result for listGroup

Expected Output (Failure):

  • Message: Error: Unable to retrieve group entries. Please try again.

Deleting a Group : deleteGroup

Deletes a group from the system, based on group number.

Format: deleteGroup gr/GROUP_NUMBER

Examples:

  • deleteGroup gr/2 deletes Group 2 from the system.
  • deleteGroup gr/5 deletes Group 5 from the system.

Acceptable Values:

  • GROUP_NUMBER: Must be a non-zero unsigned integer.

Expected Output (Success):

  • GUI: Specified group is no longer visible.
  • Message: Group deleted successfully! Deleted Group: [GROUP_NUMBER]

result for 'deleteGroup gr/3'

Expected Output (Failure):

  • Case: Group with specified number is not in the system.
    Message: Group with the provided group number not found.

Joining a Group : join

Adds a student to the specified group.

Format: join e/EMAIL gr/GROUP_NUMBER

Expected Output (Success):

  • GUI: The student’s name and email are displayed in the specified group’s card.
  • Message: Join successful! [NAME] has joined Group [GROUP_NUMBER]!

Expected Output (Failure):

  • Case: Email not found in the system.
    Message: Student with the provided email not found.
  • Case: Group number not found in the system.
    Message: Group with the provided group number not found.
  • Case: Student has been added in the group already.
    Message: The provided student is already a member of the provided group.
  • Case: Group has 5 members and is full.
    Message: Join failed as the group already has 5 members.
  • Case: Student is found in another group already.
    Message: The provided student is already in another group.

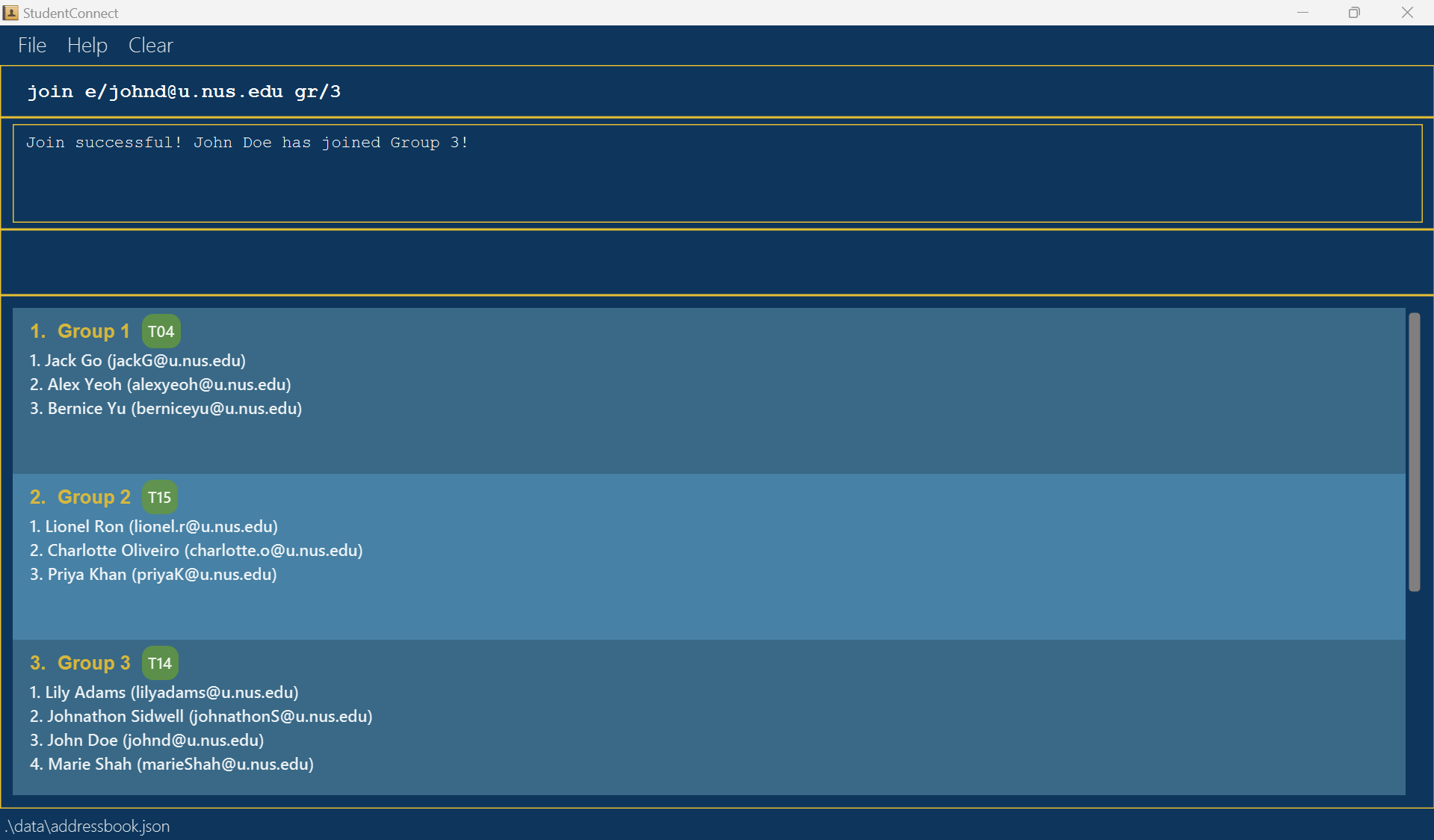

Sample result for join

Leaving a Specific Group : leave

Deletes a member from a specific group, indicating that they have left.

Format: leave e/EMAIL gr/GROUP_NUMBER

  • Removes student from specified group.

Examples:

  • leave e/johnd@u.nus.edu gr/1 Removes member with email johnd@u.nus.edu from Group 1.
  • leave e/bettyc@u.nus.edu gr/11 Removes member with email bettyc@u.nus.edu from Group 11.

Acceptable Values:

  • GROUP_NUMBER: Must be a non-zero unsigned integer.
  • EMAIL: Must be a valid NUS email registered in the system.

Expected Output (Success):

  • GUI: Student details removed from specified group.
  • Message: Leave successful! NAME has left group 1!

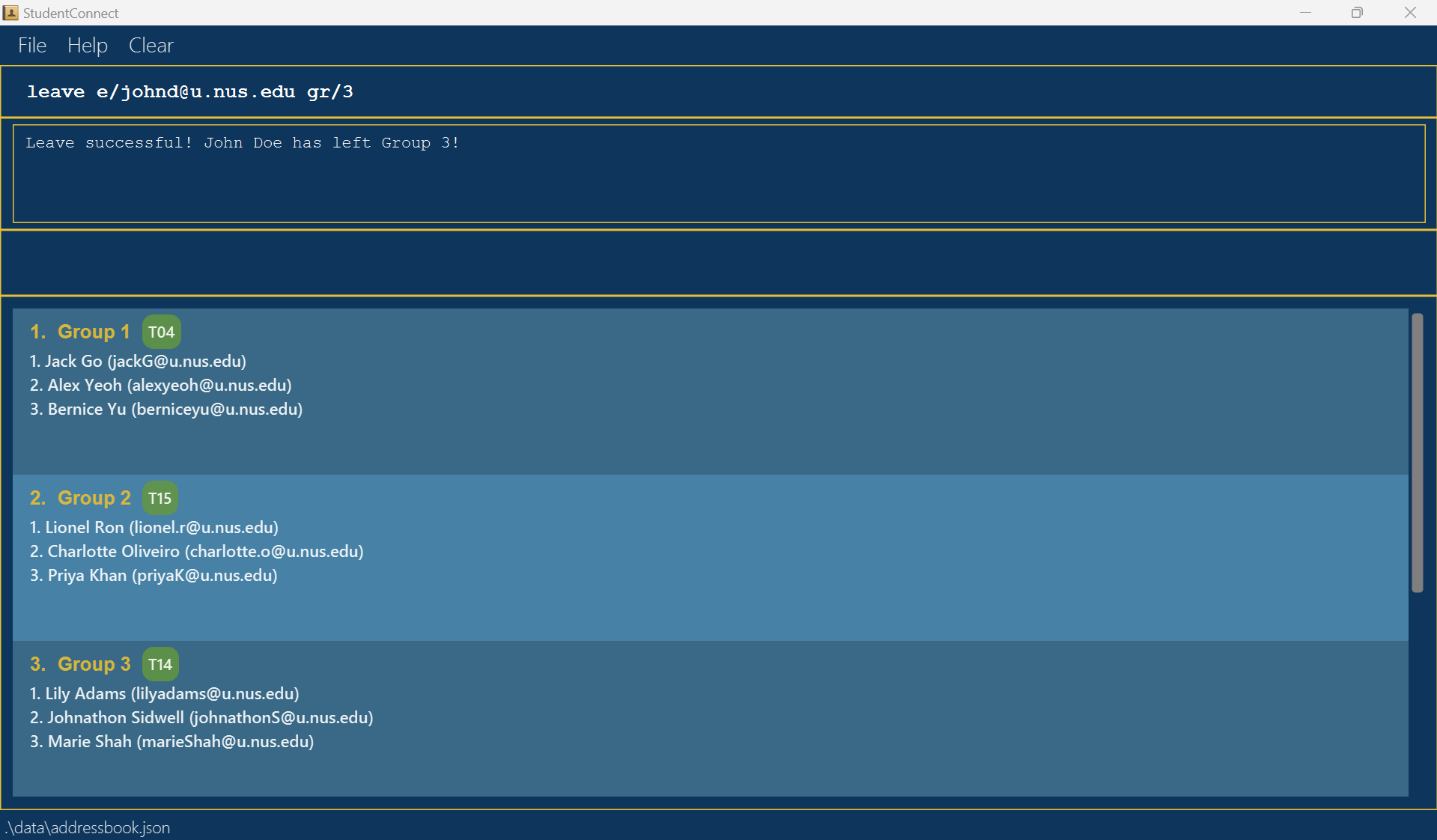

sample result for 'leave'

Expected Output (Failure):

  • Case: Email not found in the system.
    Message: Person with the provided email not found.
  • Case: Group number not found in the system.
    Message: Group with the provided group number not found.
  • Case: Student is not a member of the provided group.
    Message: The above student is not a member of the provided group.

Finding a Group by Group Number : findGroup

Finds group(s) with group number(s) that matches any of the given keywords.

Format: findGroup KEYWORD [MORE_KEYWORDS]

  • The order of the keywords does not matter. e.g. 5 12 will match 12 5.
  • Only the group number is searched.
  • Only the full keywords will be matched. e.g. 1 will not match 12.
  • Groups matching one keyword will be returned (i.e. OR search). e.g. 5 12 will return 5, 12.
  • The keyword(s) must be a non-zero unsigned integer.

Examples:

  • findGroup 7 returns Group 7.
  • findGroup 7 15 returns Group 7, Group 15.

Expected Output (Success):

  • GUI: List of all group entries whose group number(s) match the keyword(s) in the system.

sample result for 'findGroup'

Expected Output (Failure):

  • Case: Invalid command format is provided, e.g. findGroup.
    Message: Invalid command format!
    findGroup: Finds all groups whose number contain any of the specified keywords and displays them as a list with index numbers.
    Parameters: KEYWORD [MORE_KEYWORDS]...
    Example: findGroup 1 5 10
  • Case: Invalid keyword(s) is provided, e.g. findGroup a, findGroup 0, etc.
    Message: Group number is not a non-zero unsigned integer.

Filtering Groups by Tutorial : filterGroup

Filters the groups by tutorial based on the given slot.

Format: filterGroup SLOT

  • The slot must be 2-digit numbers between 01 and 22 inclusive.
  • Tutorials are only accepted as 2-digits, i.e. 3 is not a valid tutorial, but 03 is.
  • Only the tutorial is searched.

Examples:

  • filterGroup 03 returns groups that belong to T03.

Expected Output(Success):

  • GUI: List of all group entries with the tutorial that match the slot in the system.

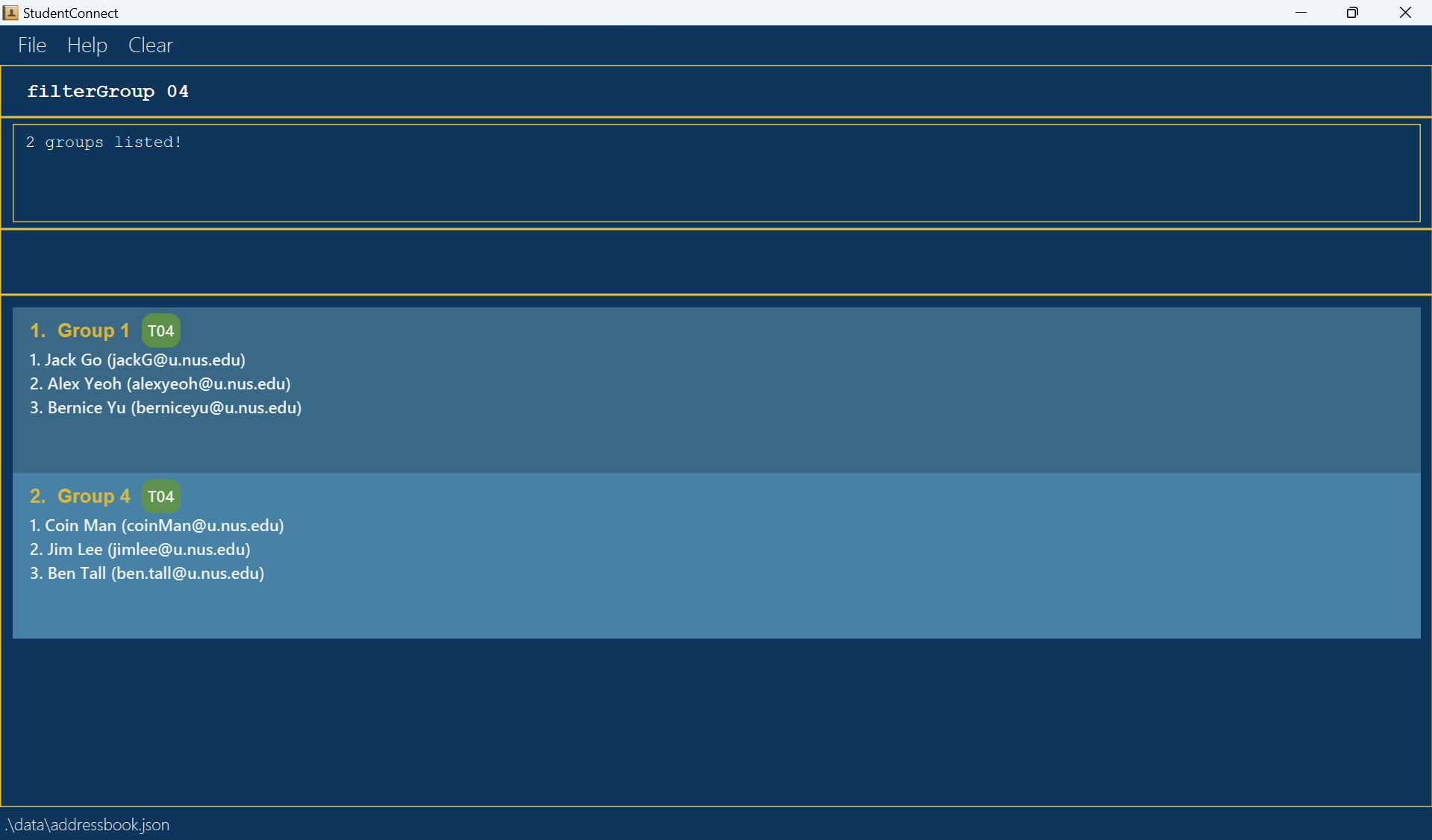

sample result for 'filterGroup'

Expected Output (Failure):

  • Case: Invalid command format is provided, e.g. filterGroup.
    Message: Invalid command format!
    filterGroup: Filters all groups that belong to the specified tutorial slot (2-digit numbers between 01 and 22) and displays them as a list with index numbers.
    Parameters: SLOT
    Example: filterGroup 01"
  • Case: Invalid slot is provided, e.g. filterGroup 0, filterGroup 25, etc.
    Message: Tutorials should be 2-digit numbers between 01 and 22.

Checking a Group : checkGroup

Checks if a group fulfils the group requirements of the course.

Format: checkGroup GR0UP_NUMBER

  • Checks the group with the specified GROUP_NUMBER.
  • The group number must come from a group that has been created in the system.
  • checkGroup does not restrict students from joining a group, instead, it provides helpful alerts to help groups adhere to the criteria set by CS2103T and CS2101.

Examples:

  • checkGroup 4 checks the group with a group number 4 if it is created in the system.

Expected Output (Success):

  • Case: Group fulfils the group requirements.
    Message: Group GROUP_NUMBER
    Group fulfils the diversity requirements of CS2103T.

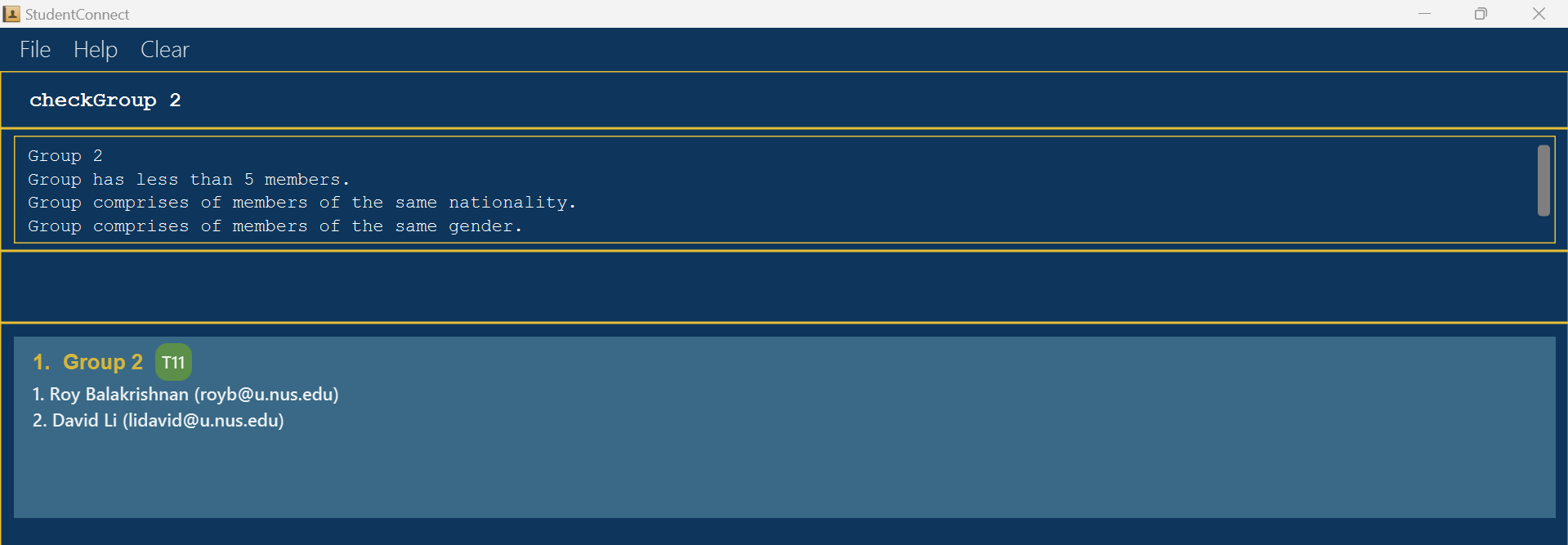

sample result for 'checkGroup'

  • Case: Group has no members.
    Message: Group GROUP_NUMBER
    Group does not have any members.
    You can enter the help command for more information on group requirements.
  • Case: Group has only 1 member.
    Message: Group GROUP_NUMBER
    Group has only one member.
    You can enter the help command for more information on group requirements.
  • Case: Group has more than 1 member and does not fulfil the group requirements. Possible messages include:
    Message: Group GROUP_NUMBER
    Message: Group has less than 5 members.
    Message: Group size has exceeded limit with more than 5 members.
    Message: Group comprises of members of the same nationality.
    Message: Group comprises of members of the same gender.
    Message: Not every group member's tutorial matches the group's tutorial.
    Message: You can enter the help command for more information on group requirements.

Expected Output (Failure):

  • Case: Invalid command format is provided, e.g. checkGroup.
    Message: Invalid command format!
    checkGroup: Checks the group identified by its group number.
    Parameters: GROUP_NUMBER"
    Example: checkGroup 1
  • Case: Group not found in the system.
    Message: Group with the provided group number not found.

Listing All Tasks : tasks

Lists out all tasks for a specific group.

Format: tasks GROUP_NUMBER

  • Lists out all tasks for the specified group.

Examples:

  • tasks 2 Lists out all tasks for group 2.
  • tasks 5 Lists out all tasks for group 5.

Acceptable Values:

  • GROUP_NUMBER: Must be a non-zero unsigned integer.

Expected Output (Success):

  • GUI: List of all tasks for the specified group is displayed, the specified group and group members are shown.
  • Message: Here are the tasks for group [GROUP_NUMBER]: [list of tasks]

sample result for 'tasks'

Expected Output (Failure):

  • Case: Invalid tasks command, e.g. tasks gr/3, tasks t, etc.
    Message: Invalid command format!
    tasks: Lists out all tasks for a specific group.
    Parameters: GROUP_NUMBER
    Example: tasks 3
  • Case: Invalid group number as the group has not yet been created.
    Message: Group with the provided group number not found.

Marking a Task as Done : mark

Mark a task for a specified group as done.

Format: mark gr/GROUP_NUMBER ti/TASK_INDEX

  • Marks the task of the specified group as done.

Examples:

  • mark gr/2 ti/1 Marks task 1 of group 2 as done.
  • mark ti/2 gr/12 Marks task 2 of group 12 as done.

Acceptable Values:

  • GROUP_NUMBER: Must be an integer value that is grater than 0 and a group number that is found in the group list.
  • TASK_INDEX: Must be an integer value that is greater than 0 and smaller than task size.

Expected Output (Success):

  • GUI: The task in the specified group is marked as done and task list is updated.
  • Message: Marked task number (ti) for group (gr) [and displays the updated task list]

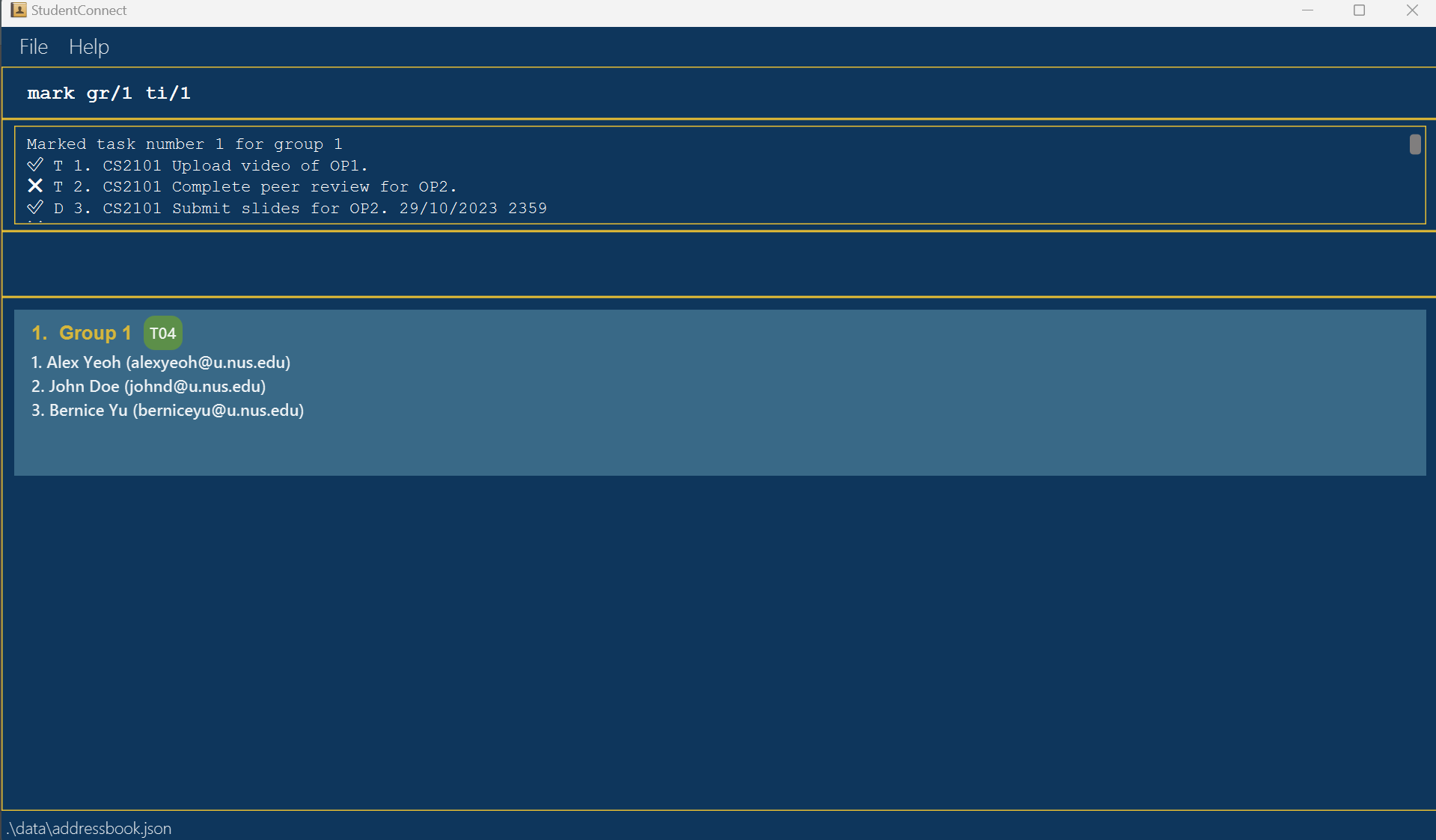

sample result for 'mark'

Expected Output (Failure):

  • Case: Invalid mark command, e.g. mark, mark t, etc.
    Message: Invalid command format! mark: Mark task specified as done. Parameters: gr/GROUP_NUMBER ti/TASK_INDEX Example: mark gr/2 ti/3
  • Case: Invalid group number, a group number that is not found from the list in listGroup command.
    Message: Group with the provided group number not found.
  • Case: Invalid group number, e.g. zero or negative numbers.
    Message: Group number is not a non-zero unsigned integer.
  • Case: Invalid task index, e.g. zero or negative numbers.
    Message: Task index must be a positive integer.
  • Case: Invalid task index, e.g. task index greater than the number of tasks found from the list in tasks command.
    Message: Invalid task index. Task not found.

Marking a Task as Not Done : unmark

Mark a task for a specified group as not done.

Format: unmark gr/GROUP_NUMBER ti/TASK_INDEX

  • Marks the task of the specified group as not done.

Examples:

  • unmark gr/7 ti/3 Marks task 3 of group 7 as not done.
  • unmark ti/5 gr/9 Marks task 5 of group 9 as not done.

Acceptable Values:

  • GROUP_NUMBER: Must be an integer value that is grater than 0 and a group number that is found in the group list.
  • TASK_INDEX: Must be an integer value that is greater than 0 and smaller than task size.

Expected Output (Success):

  • GUI: The task in the specified group is marked as not done and task list is updated.
  • Message: Unmarked task number (ti) for group (gr) [and displays the updated task list]

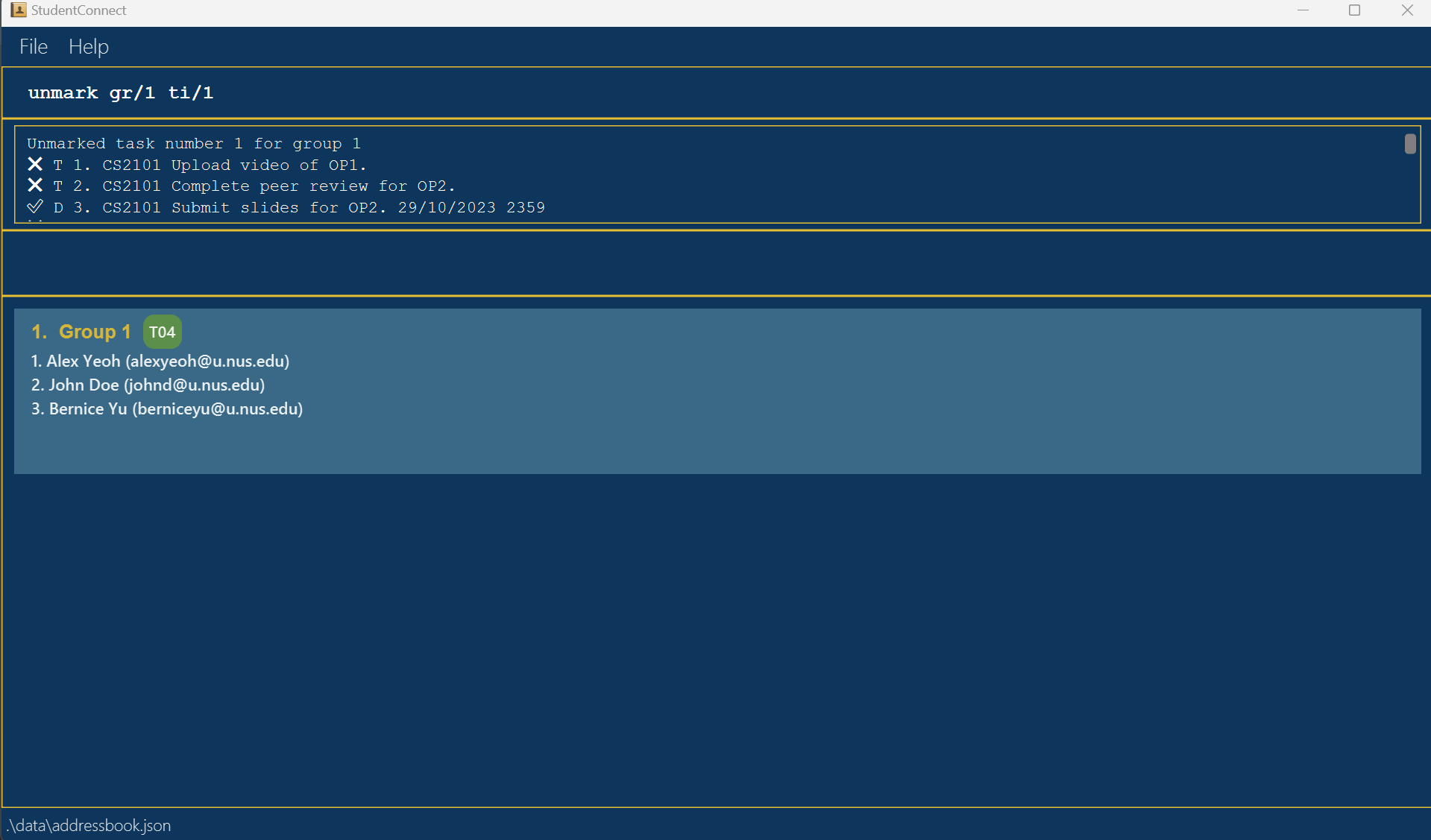

sample result for 'unmark'

Expected Output (Failure):

  • Case: Invalid unmark command, e.g. unmark, unmark t, etc.
    Message: Invalid command format! unmark: Mark task specified as not done. Parameters: gr/GROUP_NUMBER ti/TASK_INDEX Example: unmark gr/2 ti/3
  • Case: Invalid group number, a group number that is not found from the list in listGroup command.
    Message: Group with the provided group number not found.
  • Case: Invalid group number, e.g. zero or negative numbers.
    Message: Group number is not a non-zero unsigned integer.
  • Case: Invalid task index, e.g. zero or negative numbers.
    Message: Task index must be a positive integer.
  • Case: Invalid task index, e.g. task index greater than the number of tasks found from the list in tasks command.
    Message: Invalid task index. Task not found.

Back to Table of Contents

Saving The Data

Students’ data are saved in the hard disk automatically after any command that changes the data. There is no need to save manually.

Editing The Data File

Students’ data are saved automatically as a JSON file [JAR file location]/data/addressbook.json. Advanced users are welcome to update data directly by editing that data file.

:exclamation: Caution: If your changes to the data file makes its format invalid, StudentConnect will discard all data and start with an empty data file at the next run. Hence, it is recommended to take a backup of the file before editing it.

Back to Table of Contents

FAQ

Q: How do I transfer my data to another Computer?
A: Install the app in the other computer and overwrite the empty data file it creates with the file that contains the data of your previous StudentConnect home folder.

Q: Where is my data being saved?
A: It is saved in [JAR file location]/data/addressbook.json.

Back to Table of Contents

Known Issues

  1. When using multiple screens, if you move the application to a secondary screen, and later switch to using only the primary screen, the GUI will open off-screen. The remedy is to delete the preferences.json file created by the application before running the application again.
  2. Clear Command, if you use the clear command, but exit the application incorrectly using the red exit button instead of running the exit command, data will not be cleared. Kindly always use the exit command to leave the application.

    Back to Table of Contents

Command Summary

Action Format, Examples
Help help
Clear clear
Exit exit
Add add n/NAME m/MAJOR y/YEAR e/EMAIL d/DESCRIPTION [t/TUTORIALS]…​ [sm/SOCIALMEDIA]…​ nt/NATIONALITY g/GENDER
e.g., add n/Betsy Crowe m/Computer Science y/2 e/betsycrowe@u.nus.edu t/05 d/I’m adept at Backend technologies nt/local g/f
List list
Edit edit EMAIL [n/NAME] [m/MAJOR] [y/YEAR] [e/EMAIL] [d/DESCRIPTION] [t/TUTORIALS]…​ [sm/SOCIALMEDIA]…​ [nt/NATIONALITY] [g/GENDER]
e.g.,edit jameslee@u.nus.edu n/James Lee e/jameslee@u.nus.edu
Find find KEYWORD [MORE_KEYWORDS]…​
e.g., find James Jake
Filter filter SLOT [MORE_SLOTS]…​
e.g., filter 05 11
Delete delete EMAIL
e.g., delete betsycrowe@u.nus.edu
Create group create t/[TUTORIAL]
e.g., create t/01
List groups listGroup
Delete group deleteGroup gr/[GROUP_NUMBER}
e.g., deleteGroup gr/1
Join group join e/[EMAIL] gr/[GROUP_NUMBER]
e.g., join e/johnd@u.nus.edu gr/1
Leave group leave e/[EMAIL] gr/[GROUP_NUMBER}
e.g., leave e/johnd@u.nus.edu gr/1
Find group findGroup KEYWORD [MORE_KEYWORDS]
e.g., findGroup 7 15
Filter group filter SLOT
e.g., filterGroup 3
Check group checkGroup GR0UP_NUMBER
e.g., checkGroup 4
List Tasks tasks GROUP_NUMBER
e.g., tasks 5
Mark mark gr/GROUP_NUMBER ti/TASK_INDEX
e.g., mark gr/2 ti/1
Unmark unmark gr/GROUP_NUMBER ti/TASK_INDEX
e.g., unmark gr/5 ti/1

Back to Table of Contents

Appendix

This section includes details on the requirements of each field in the StudentConnect system.

Name Format

The name field indicates the student’s name.

:bulb: Tip: Ensure that the name is appropriately formatted with only letters and spaces, without exceeding the specified character limit below. Special characters and digits are not permitted.
  • Type: Alphabetic.
  • Character Restrictions: Only alphabetical characters (A-Z, a-z) and spaces are allowed.
  • Length: Must not exceed 30 characters.
  • Blank Fields: The field should not be left blank.

Examples of Valid Inputs:

  • John Doe
  • Alice
  • La Niña
  • Élise DuPont

Examples of Invalid Inputs:

  • John123 (Invalid due to numeric characters)
  • John_Doe (Invalid due to underscore)
  • [Blank Field] (Invalid as the field cannot be blank)
  • Elizabeth Alexandra Mary Windsor (Invalid as it exceeds 30 characters)

Valid Majors

The majors field indicates the major that the student is enrolled in.

:bulb: Tip: If your major is not in the list below, you can simply write Others as your major.
:bulb: Tip: If you have a double degree, double major or a major-minor, you are required to choose only one major. Please select any one of the majors listed below.

For now, we accept the following majors in National University of Singapore(NUS):

Major
Accountancy
Actuarial Studies
Anthropology
Architecture
Biological Sciences
Biomedical Engineering
Business Administration
Business Administration (Accountancy)
Business Analytics
Chemical Engineering
Chemistry
Chinese Language
Chinese Studies
Communications and New Media
Civil Engineering
Computer Engineering
Computer Science
Data Science and Analytics
Data Science and Economics
Dentistry
Economics
Electrical Engineering
English Language
English Literature
Environmental Engineering
Environmental Studies
Food Science and Technology
Geography
Global Studies
History
Japanese Studies
Industrial Design
Industrial Engineering
Industrial and Systems Engineering
Information Systems
Information Security
Infrastructure and Project Management
Landscape Architecture
Law
Life Sciences
Malay Studies
Management
Marketing
Materials Science and Engineering
Mathematics
Mechanical Engineering
Medicine
Pharmaceutical Science
Philosophy
Philosophy, Politics, and Economics
Physics
Political Science
Psychology
Quantitative Finance
Real Estate
Social Work
Sociology
South Asian Studies
Southeast Asian Studies
Statistics
Systems Engineering
Theatre Studies
Urban Studies
Visual Communications

Valid Years

The year field is used to represent the student’s current year of study.

:bulb: Tip: This field strictly requires a single-digit number. Ensure there are no leading zeros or non-numeric characters.
Year
1
2
3
4
5
6

Email Formats

The email field is used to represent the student’s email, and is the unique identifier for each student.

:bulb: Tip: Ensure the email address includes the specified domain and the local-part conforms to the outlined character restrictions and length below.
  1. Local-Part Format:
    • Allowed Characters: Alphanumeric characters (A-Z, a-z, 0-9) and special characters (+, _, ., -) only.
    • Character Limit: Must not exceed 20 characters.
    • Positioning of Special Characters: The local-part must not start or end with any of the special characters (+, _, ., -).
    • Structure: It should be in the format of local-part@u.nus.edu.
  2. Domain Name:
    • Fixed Domain: The domain name must be u.nus.edu.
    • Symbol: The local-part and domain name should be separated by an ‘@’ symbol.

Examples of Valid Inputs:

  • johndoe@u.nus.edu
  • alice.bob@u.nus.edu
  • n_user123@u.nus.edu

Examples of Invalid Inputs:

  • john@u.nus.edu (Invalid as it exceeds 20 characters in the local-part)
  • .johndoe@u.nus.edu (Invalid as the local-part starts with a special character)
  • johndoe@example.com (Invalid as the domain name is not ‘u.nus.edu’)
  • johndoe@u.nus (Invalid as the domain name is incomplete)

Description Formats

The description field is to allow student’s to put any fun facts or information they’d like to share.

:bulb: Tip: Descriptions that are blank or that exceed 150 characters are not accepted.

Length Constraints:

  • Minimum Length: The description must not be blank.
  • Maximum Length: The description should not exceed 150 characters.

Examples of Valid Inputs:

  • “Minoring in Mathematics”
  • “Backend Developer”
  • “In need of two more members!”

Valid Tutorials

The tutorial field is used to represent tutorial slots students’ are interested in or have been assigned.

:bulb: Tip: This field strictly requires a double-digit number. Ensure are no non-numeric characters.
Tutorial
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22

The social media links field is used for entering URLs that direct to social media profiles or pages.

:bulb: Tip: Ensure that the social media links conform to the standard URL format, with the correct protocol and a valid domain name. The link should be fully functional and direct to the intended social media page.
  • Protocol Prefix: Must begin with either “http://” or “https://”.
  • Domain Name:
    • Allowed Characters: Alphanumeric characters (A-Z, a-z, 0-9), dots (.), and hyphens (-).
    • Requirement: The domain name must consist of one or more of the allowed characters.
  • Structure: The format should follow the standard URL structure, starting with the protocol prefix, followed by the domain name.

Examples of Valid Inputs:

  • http://facebook.com/username
  • https://twitter.com/username
  • http://www.linkedin.com/in/username

Examples of Invalid Inputs:

  • www.instagram.com/username (Invalid as it lacks the “http://” or “https://” prefix)
  • https://facebook_com/username (Invalid due to the use of an underscore in the domain name)
  • https:/twitter.com/username (Invalid due to incorrect protocol format)

Valid Nationalities

Nationality field is used to display the nationality of the student.

:bulb: Tip: The nationality field is case-insensitive, but can only contain values local or foreigner.
Nationality
local
foreigner

Valid Genders

Gender field is used to display the gender of the student.

:bulb: Tip: The gender field is case-insensitive, but can only contain values M or F.
Gender
M
F

Valid Group Numbers

The group number field is used to specify the numeric identifier of a group.

:bulb: Tip: Verify that the group number entered is for a group that exists in the system.
Ensure the number is purely numeric without any alphabetic characters or special symbols.
  • Type: Numeric.
  • Reference Requirement: The number must correspond to a group that has already been created within the system.
  • Uniqueness: Each group number is unique. It should not duplicate the identifier of another group.

Valid Task Indexes

The task index field is used to differentiate tasks.

:bulb: Tip: Verify that the task index entered is for a task that exists for that group.
Ensure the number is purely numeric without any alphabetic characters or special symbols.
  • Type: Numeric
  • Reference Requirement: The number must correspond to a task within the system.
  • Uniqueness: Each task number is unique. It should not duplicate the identifier of another task .

Back to Table of Contents

Glossary

This glossary is intended to provide definitions for terms that may be unfamiliar to you. It is arranged in alphabetical order.

  • CS2101: Effective Communication for Computing Professionals - An NUS course designed to equip computing professionals with essential communication skills, both in technical and non-technical contexts. It covers the creation of clear and comprehensible software documentation and effective communication strategies for diverse audiences.

  • CS2103T: Software Engineering - An NUS course focusing on the systematic and rigorous development of software systems. It covers essential concepts and analytical tools necessary for software engineering.

  • Case-Insensitive: Refers to the handling of text where uppercase and lowercase letters are treated as equivalent. For instance, in a case-insensitive search, searching for “Java” or “java” would yield the same results.

  • Command Terminal: An interface in a computing environment where you can input text commands to perform specific tasks. Some examples include “Terminal” on macOS and “Powershell” on Windows.

  • Double Degree: An academic program where a student earns two distinct degrees simultaneously, usually in different fields.

  • Double Major: A type of academic degree where a student completes two sets of major requirements, although they receive just one degree.

  • Major-Minor: An academic program where a student completes a major (primary focus) and a minor (secondary concentration) in different subjects.

  • Extraneous Parameters: These are additional or unnecessary parameters given in a command that do not affect its execution but are not required for the command to function properly.

  • GUI (Graphical User Interface): A type of user interface that allows you to interact with electronic devices through graphical icons and visual indicators, as opposed to text-based interfaces, typed command labels, or text navigation.

  • Home Folder: In computing, this is a personal directory assigned to you in a file system, where they store personal files, settings, and configurations.

  • Issue (GitHub): A feature in GitHub used to track ideas, enhancements, tasks, or bugs for work on GitHub projects.

  • Java 11: A version of Java, a widely used programming language and computing platform. Java 11 includes various updates and features different from its predecessors.

Back to Table of Contents
